DT Swiss Hubs
We’ve been building with DT Swiss hubs for years. They’re reliable and available in a wide variety of spec options, so ideal for the heart of a custom wheelset. Whether building for road, gravel or mountain bike, DT Swiss has a hub solution.
DT Swiss 350
The DT Swiss 350 is sometimes referred to as the ‘people’s hubset’. It’s an entry level high performance hub. Get nerdy with all the specs here.
DT Swiss 240 EXP
The DT 240 EXP hubset is lighter and more expensive than the 350. Hear it purrrrr here
DT Swiss 180 EXP
The DT 180 EXP is the crown jewel of lightweight hubs, and is only available in limited straight-pull configurations.
![DT Swiss 180](https://www.wheelworks.co.nz/wp-content/uploads/2022/09/dt-180-1024x717.jpg)
Comparison

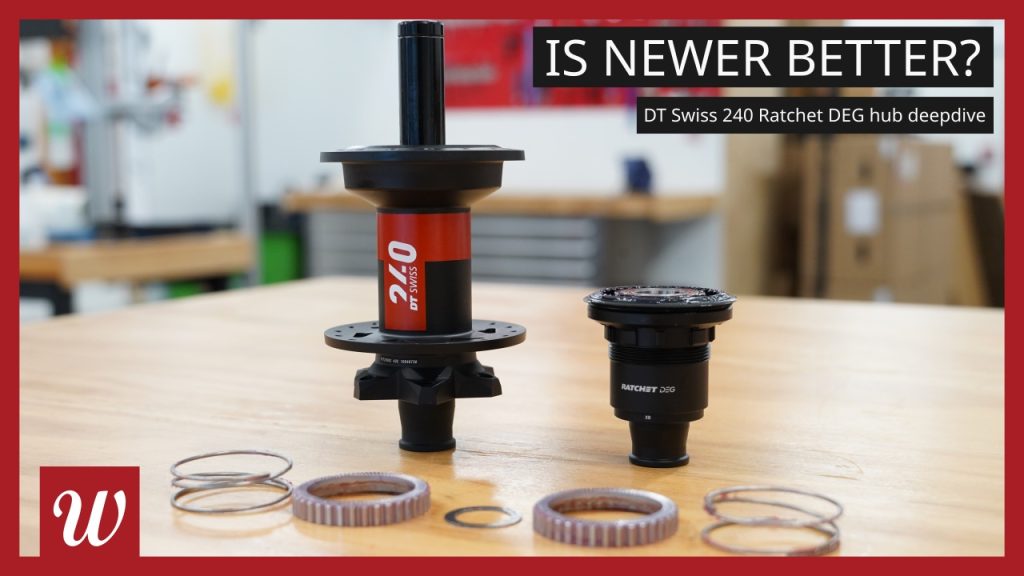

For in-depth comparison between all three hubs, check out our deep dive.
DT Swiss Spare Parts
Find parts and manuals on DT Swiss hubs here.
![DT-Swiss-Ratchet-LN-hub-upgrade-kit_from-3-pawls-to-Star-Ratchet_exploded-1024x569-1](https://www.wheelworks.co.nz/wp-content/uploads/2024/07/DT-Swiss-Ratchet-LN-hub-upgrade-kit_from-3-pawls-to-Star-Ratchet_exploded-1024x569-1-1024x569.jpeg)
350 2021 | 350 2022 | 240 EXP | 180 EXP | |
Drive system type | Classic star ratchet | Classic star ratchet | EXP star ratchet | EXP star ratchet |
Country of origin | Taiwan | Taiwan | Taiwan | Taiwan |
Bearings | ||||
Bearing material | steel | steel | steel | hybrid ceramic |
Bearing size - Driveside | 15x28x7mm | 15x28x7mm | 15x26x7mm | 15x26x7mm |
Bearing size - Non Driveside | 15x28x7mm | 15x28x7mm | 15x26x7mm | 15x24x5mm |
Visual appearance | ||||
Surface finish | Painted | Anodised | Anodised | Anodised |
Logo | Sticker | Permanent white | Perminent red | Perminent black |
Variants | ||||
Spoke type | J-bend and Straight | J-bend and Straight pull | J-bend and Straight | Straight only |
Spoke count | Lots | Lots | Lots | Limited |
Hub widths & Axle type | All | All | All | Limited |
Weights: | 350 2021 | 350 2022 | 240 EXP | 180 EXP |
(All of these are 148x12mm rear hubs with centerlock rotor and Microspline freehub body. Weights will vary depending on freehub body and rotor type) | ||||
Total weight: | 249.45 g | 214.50 g | 186.34 g | |
Weight comparison to 350 | -- | -34.95 g | -63.11 g | |
Weight comparison to 240 EXP | 34.95 g | -- | -28.16 g | |
Weight comparison to 180 EXP | 63.11 g | 28.16 g | -- | |
Hub shell (148x12mm) | 78.39 g | 87.40 g | 66.51 g | |
Freehub body (Sram XD) | 40.48 g | 40.05 g | 39.01 g | |
Axle (148x12mm) | 31.67 g | 22.59 g | 22.65 g | |
Driveside endcap | 5.72 g | 5.16 g | 5.14 g | |
Non Driveside endcap | 11.53 g | 10.69 g | 10.71 g | |
EXP bearing carrier and driveside bearing | -- | 25.94 g | 24.65 g | |
Driveside bearing (350 only) | 16.12 g | |||
Non drive bearing | 16.12 g | 12.12 g | 7.08 g | |
spring(s) | 2.14 g | 1.22 g | 1.21 g | |
star ratchet plate(s) | 23.52 g | 6.53 g | 6.54 g | |
Star ratchet spacer | 3.28 g | 2.04 g | 2.05 g | |
EXP support ring | -- | 0.76 g | 0.79 g | |
Star ratchet carrier (350 only) | 17.18 g | -- | -- | |
Shell seal (350 only) | 2.22 g | -- | -- | |
Bearing cover (350 only) | 1.08 g | -- | -- |
