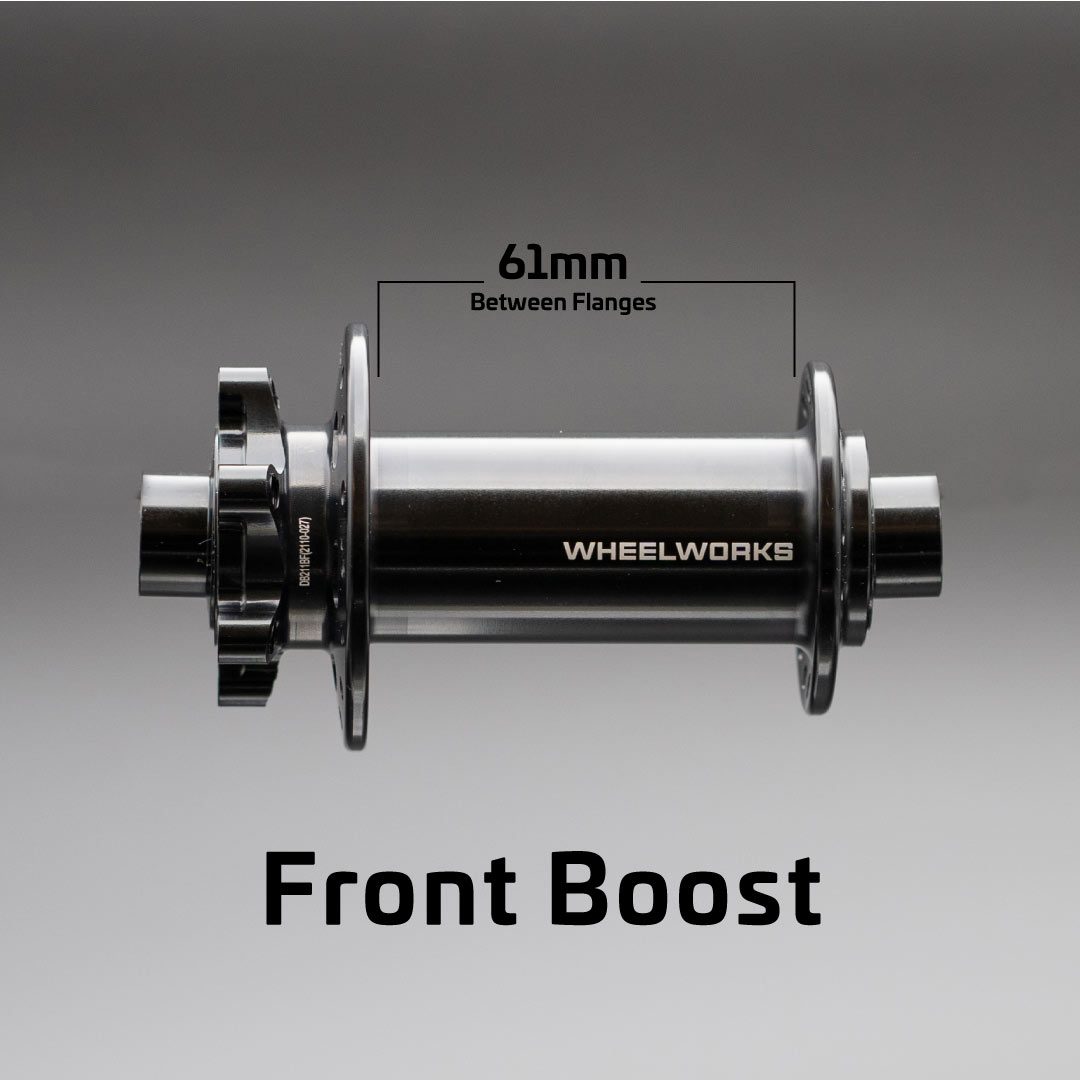

Dial 6-Bolt Disc Boost Front Hub

Dial 6-Bolt Disc Boost Front Hub

Dial 6-Bolt Disc Boost Front Hub

This page covers everything you need to own and maintain a Dial 6-Bolt Disc Boost Front Hub.

Dial Service Centre › Dial › Front Hub › 6-Bolt
Need more help?

Need more help?

We're proud of the service and support we offer on Dial hubs. Drop us a note or call if you need help servicing or maintaining your Dial

sales@wheelworks.co.nz | +64 4 387 3592
SpecsExploded DiagramEndcapsBearingsSmall Parts

Specs

Designed for

Road | Gravel | XC | Trail | Light-weight e-bike

Spoke count

24, 32 hole

Max Rotor Size

203mm

Spoke Compatibility

J-Bend


Exploded Diagram

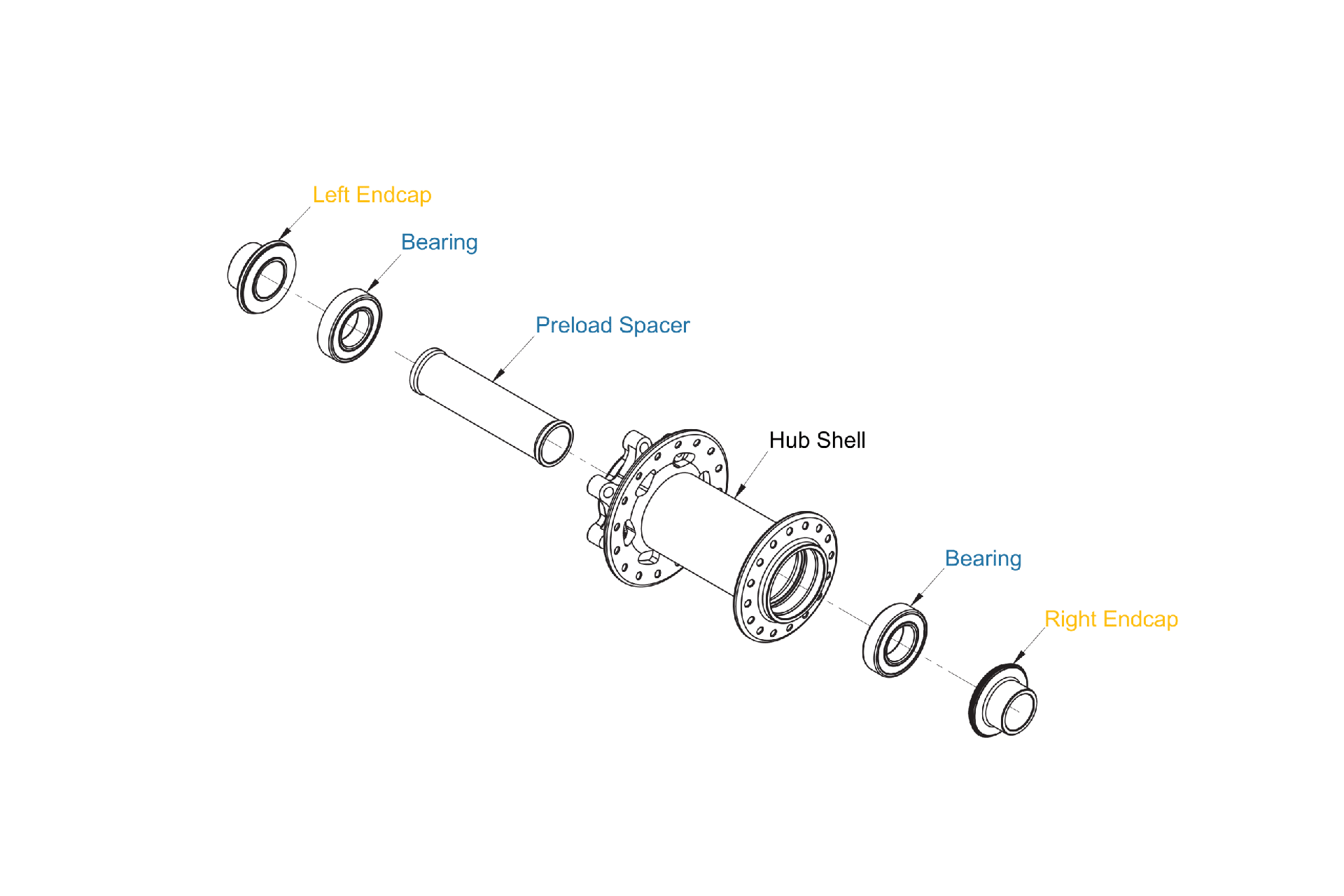

Exploded diagram: Front 6-Bolt 110x15mm


Endcaps

Your Dial front hub uses interchangeable endcaps to work with different axle types.


Bearings


Left

Right

Hub Shell

15x28x7mm

15x28x7mm

Revo Bearing, 15x28x7mm Revo Bearing, 15x28x7mm

Small Parts

Dial small part: Dial hub shell bearing spacer S12-68.85 (68.85mm length) Dial small part: Dial hub shell bearing spacer S12-68.85 (68.85mm length)
