'Mountain Bike Wheels' Category

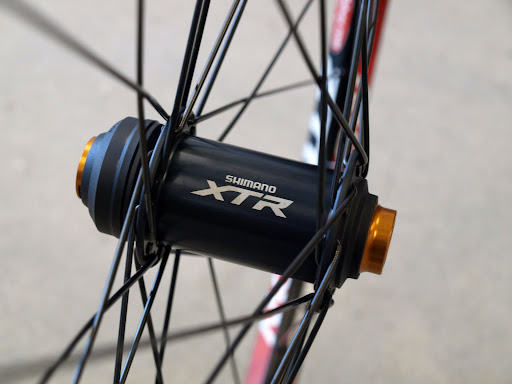

Tim’s XTR hubs and Flow rims

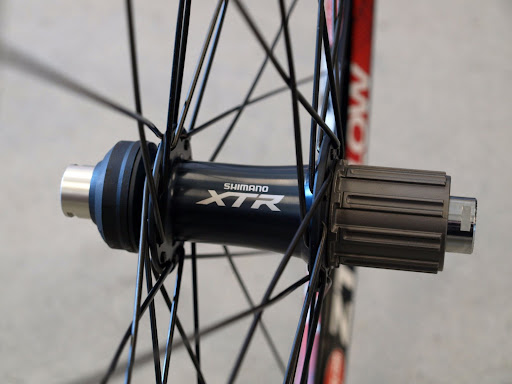

Tim sent me a pair of XTR hubs to be built up. The front is a 20mm thru-axle and the rear is one of the new 142x12mm thru-axle designs.

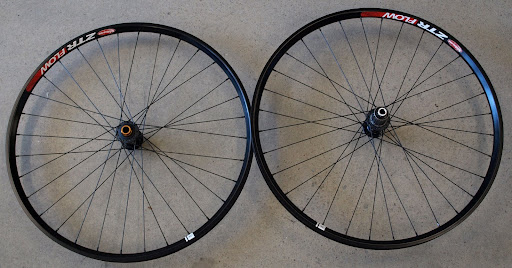

I laced these hubs to a pair of Stan’s Flow rims. At 28mm the Flow is the widest of the Stan’s range and well suited to supporting wider tyres, but is still very light at only 460 grams.

DT Swiss Competition spokes and a combination of aluminium and brass nipples hold everything together.

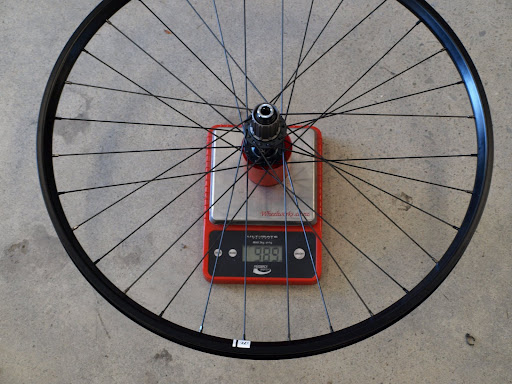

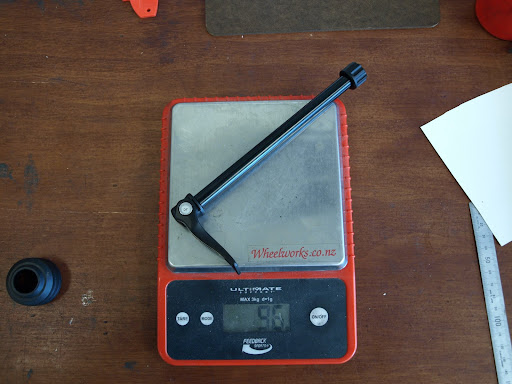

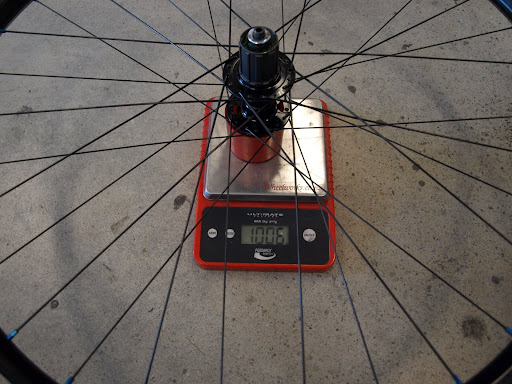

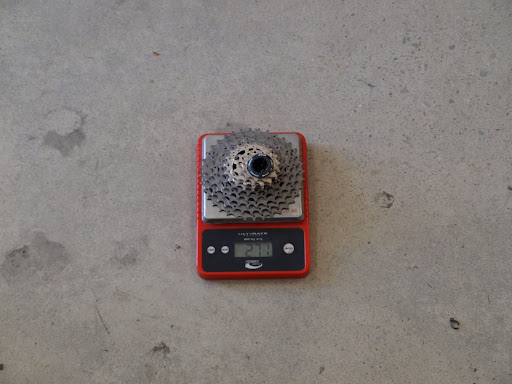

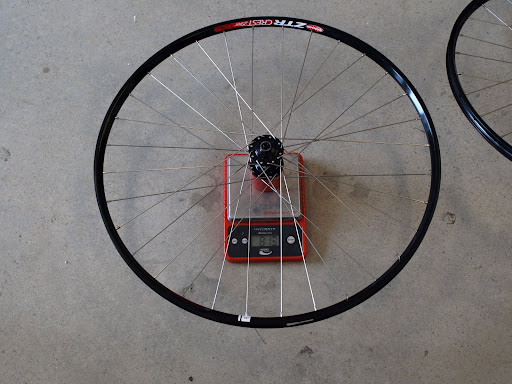

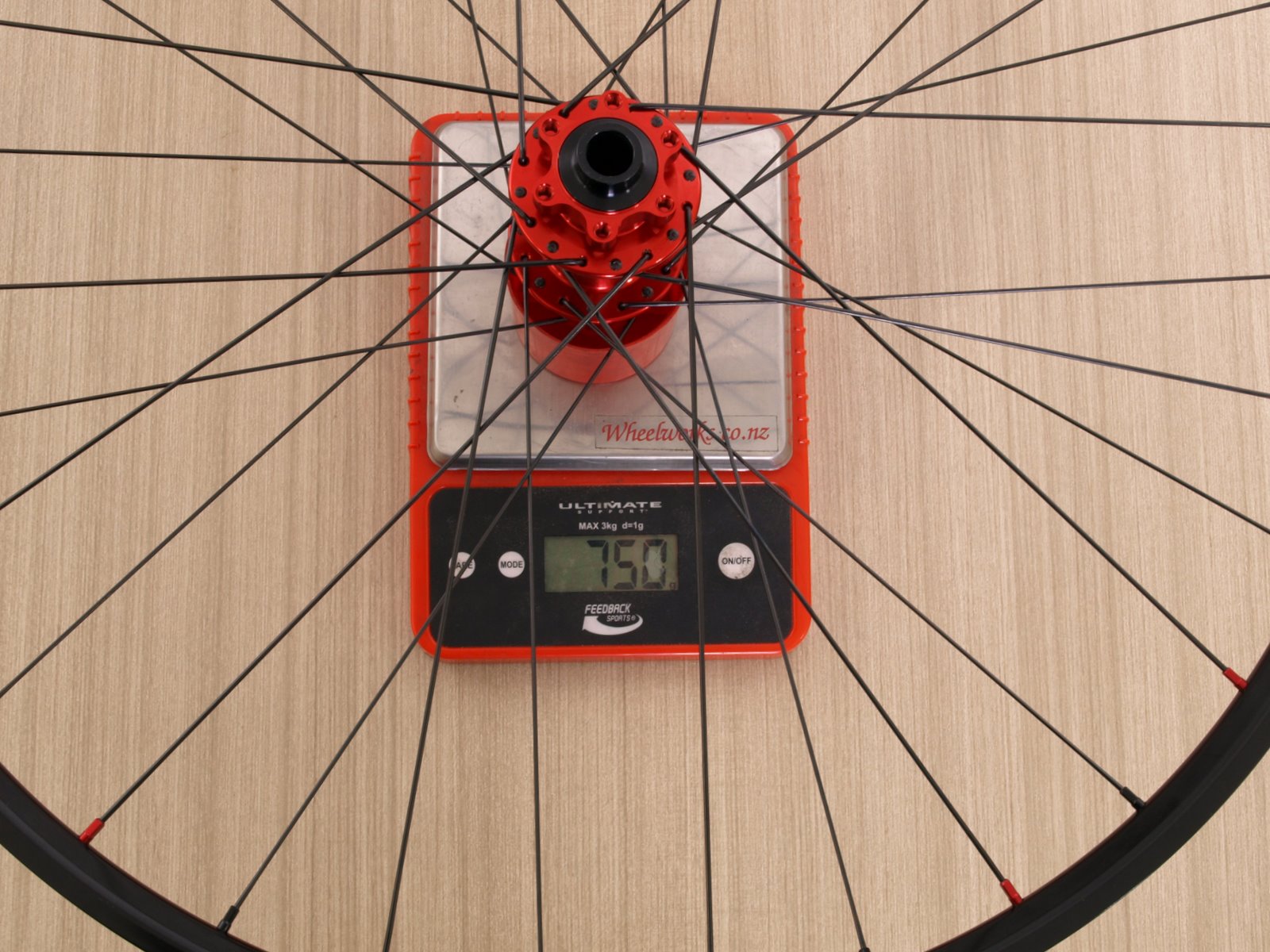

There are some other photos as Tim is a bit of a weight-weenie :-)

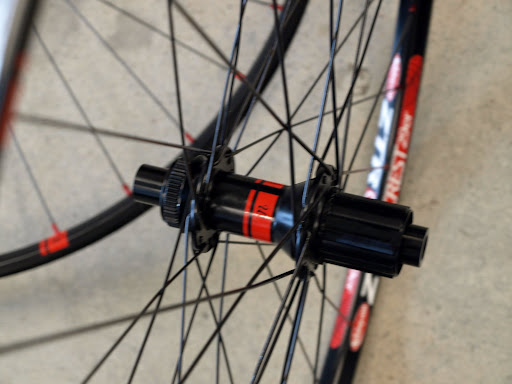

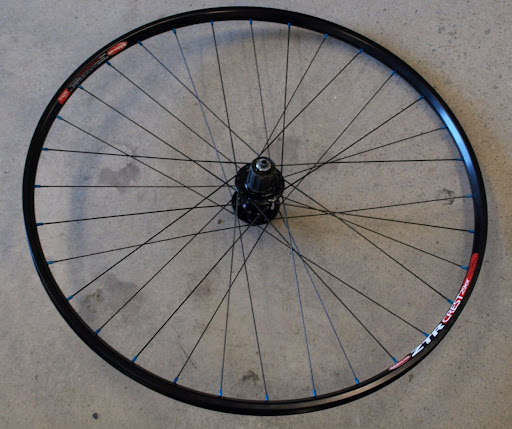

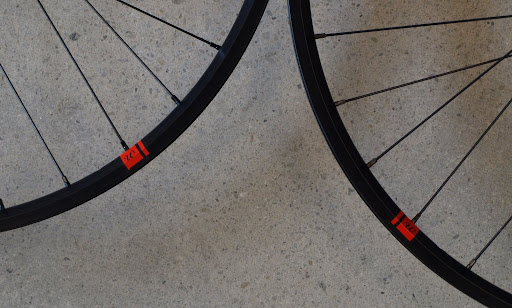

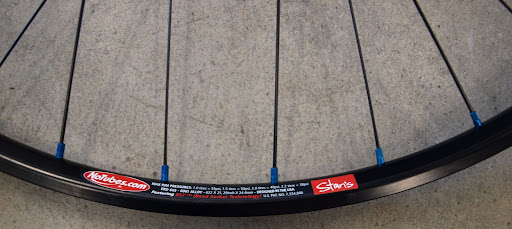

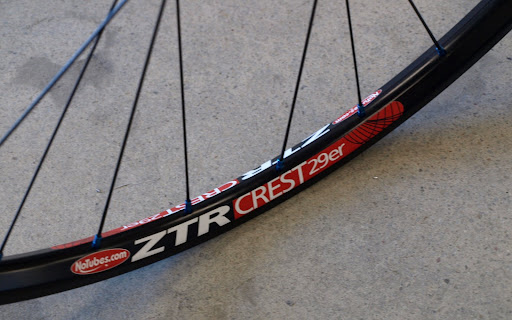

Ben’s Giant rear wheel rebuild with Crest rim

A damaged rear rim was a good opportunity for Ben to drop some weight and run a tubeless setup on his Giant 29er.

I rebuilt the rear wheel with a Crest rim. I use Revolution spokes on the non-driveside, and stiffer Competition spokes on the driveside. Blue spokes nipples on both sides tie the rear to it’s matching front.

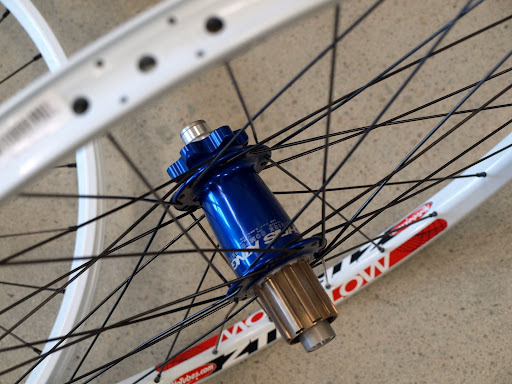

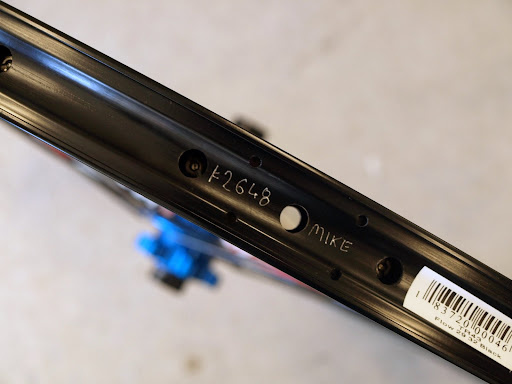

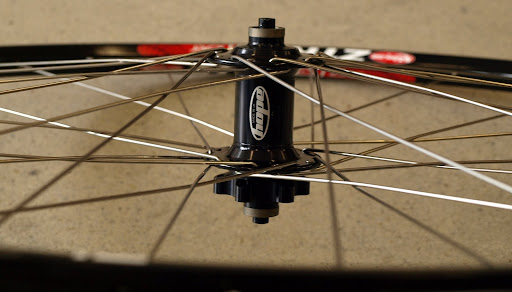

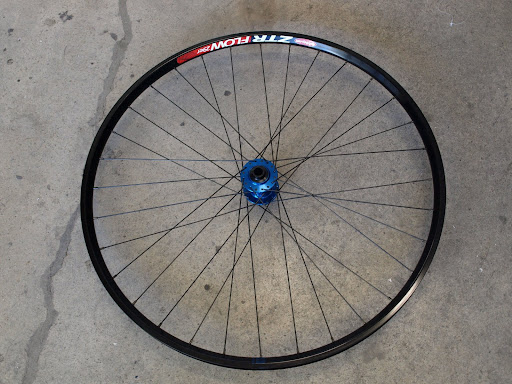

Mike’s Hope Pro2 blue hub and Flow 29 rim

Another Pro2 wheelbuild – it’s funny how a random series of wheels gets built using similar parts.

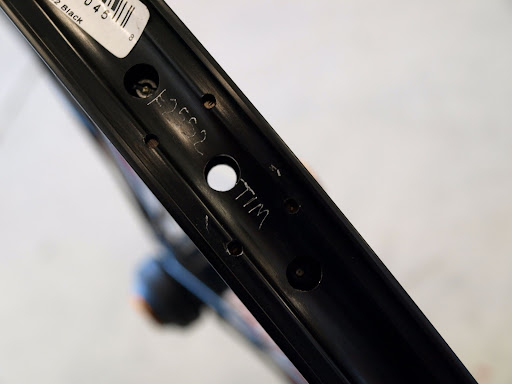

This rear wheel is to be a durable, long-lasting tubeless-ready training wheel for Mike’s 29er. The Flow rim is very stiff and has a proven track record.

All the spokes are double-butted DT Swiss Competitions with black brass nipples.

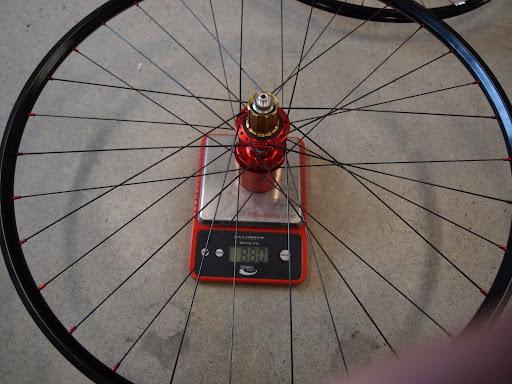

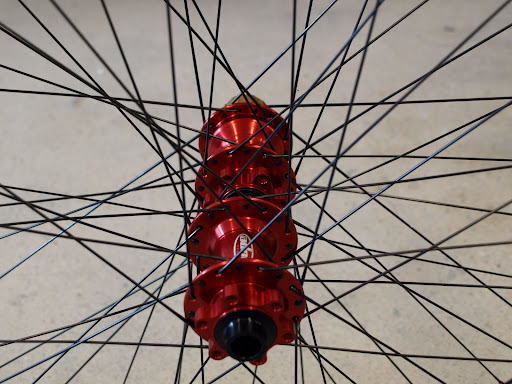

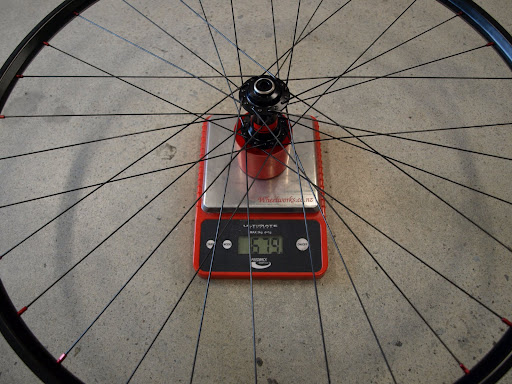

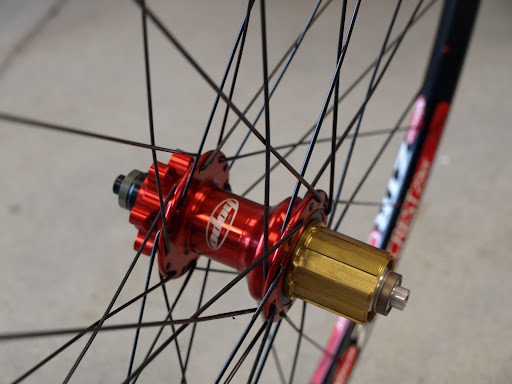

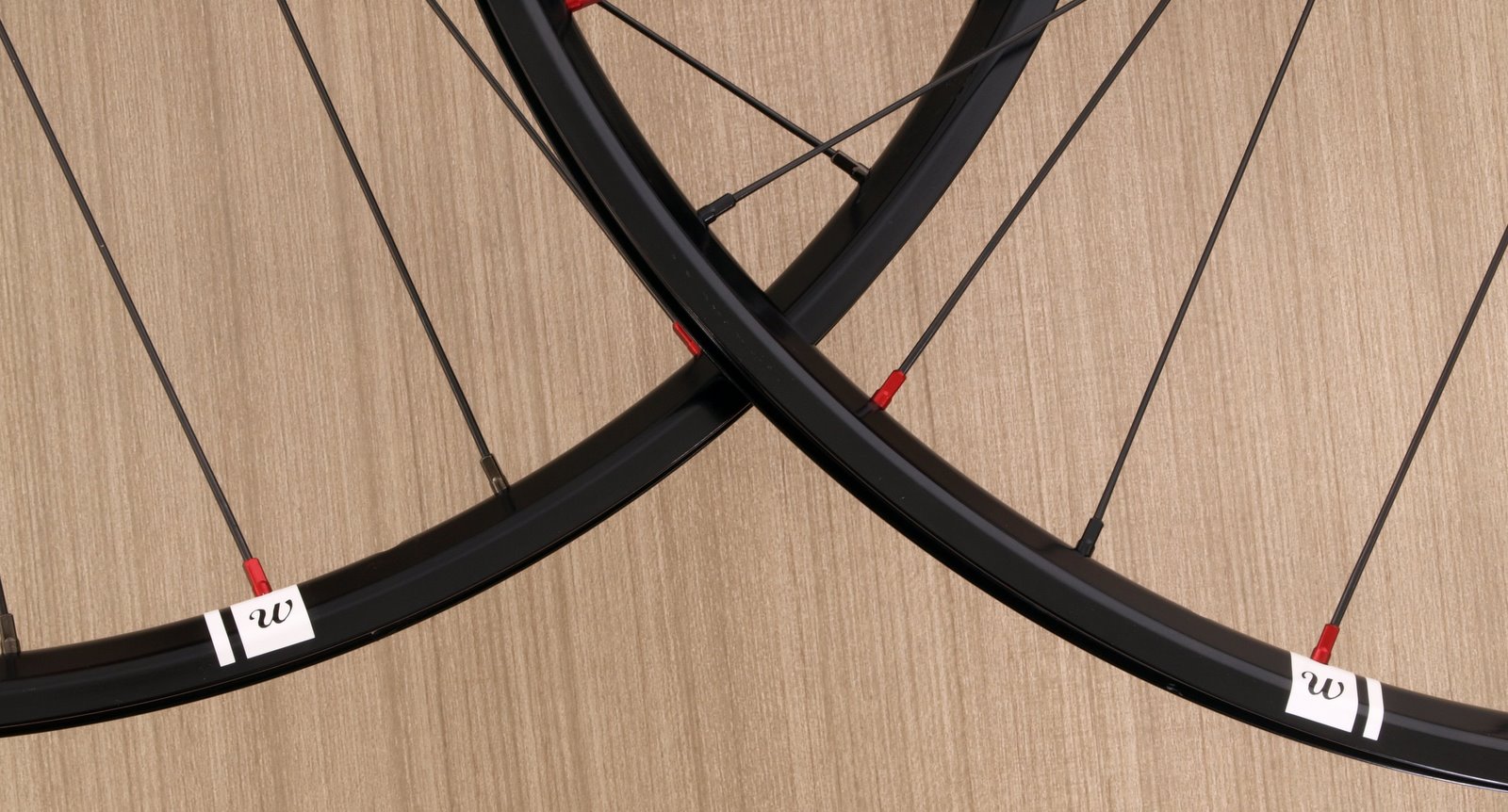

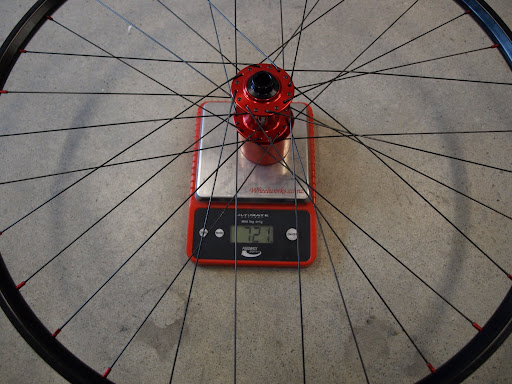

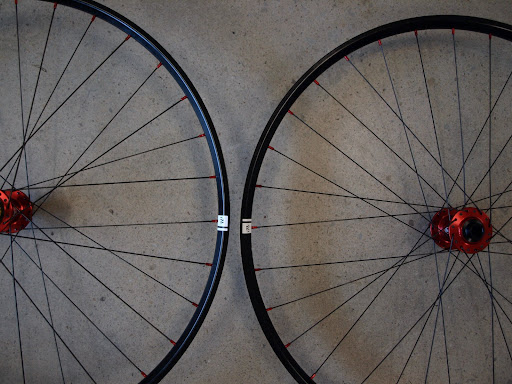

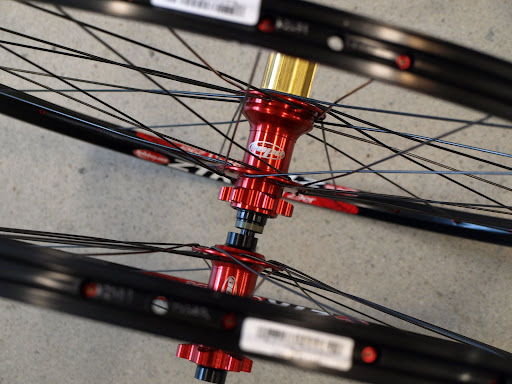

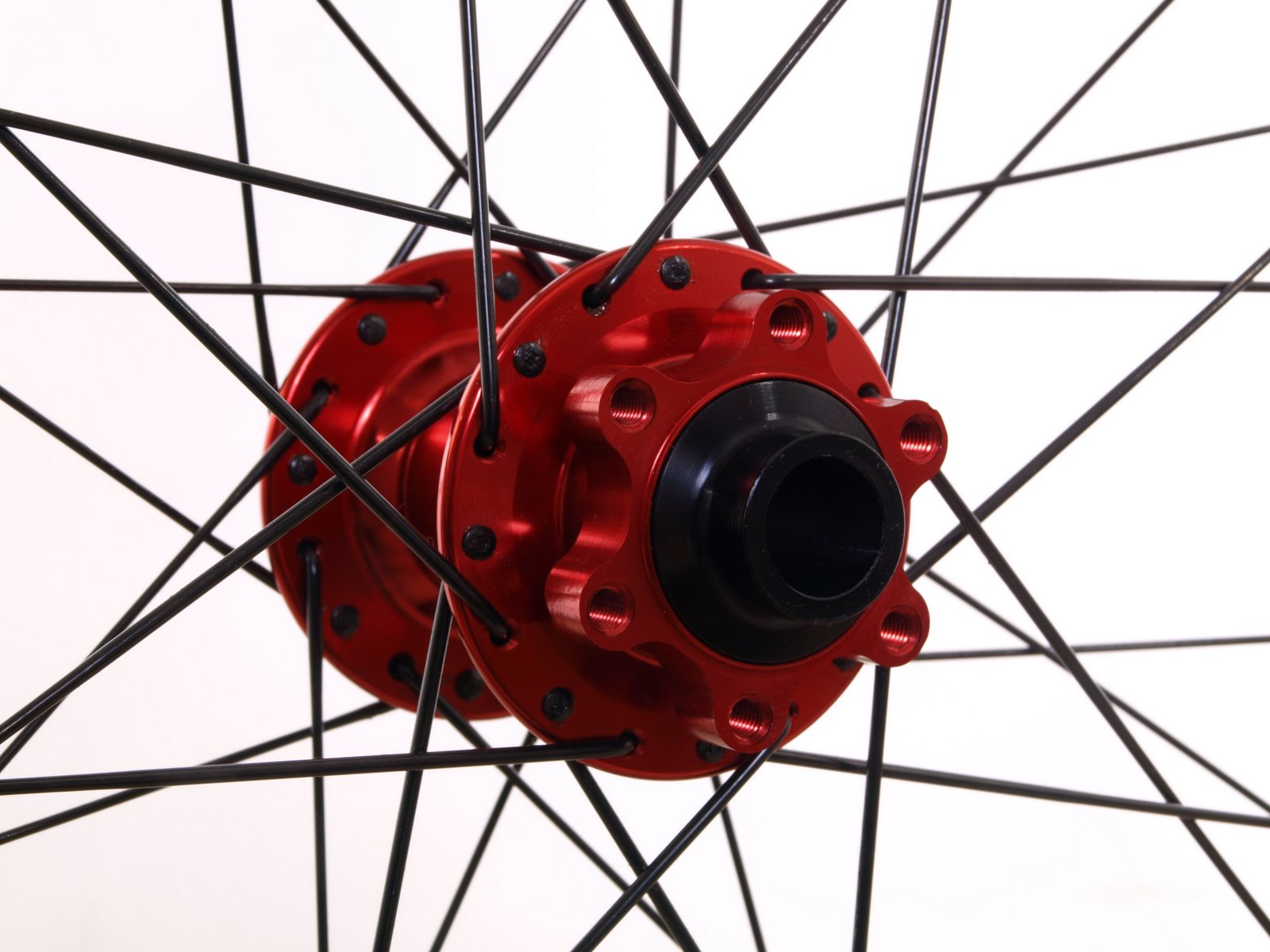

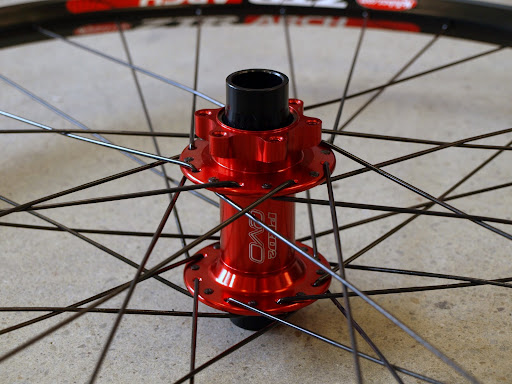

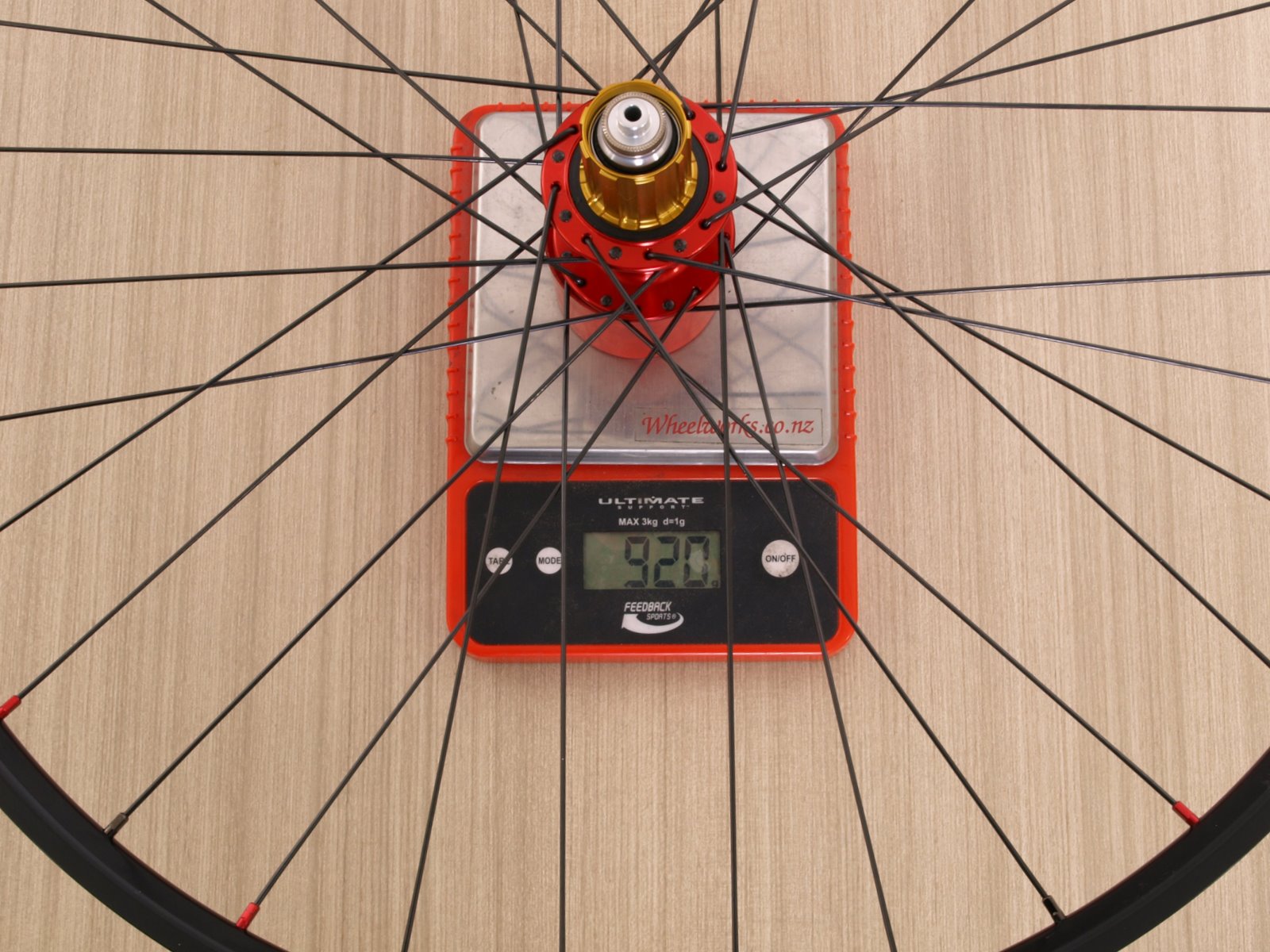

Lachlan’s Crest rims and Pro2 hubs with red nipples and hubs

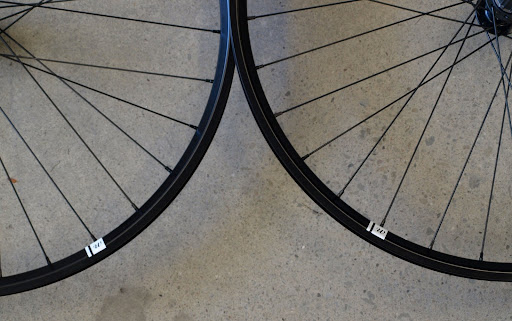

Lachlan wanted a pair of light and durable cross country wheels which would be tubeless-ready. The Stan’s Crest rims fit the bill perfectly.

I suggested Hope Pro2 hubs as Lachlan’s current bike / fork use quick-release axles, however if he upgrades in the future these hubs have the ability to be converted to whatever axle standards are current at the time.

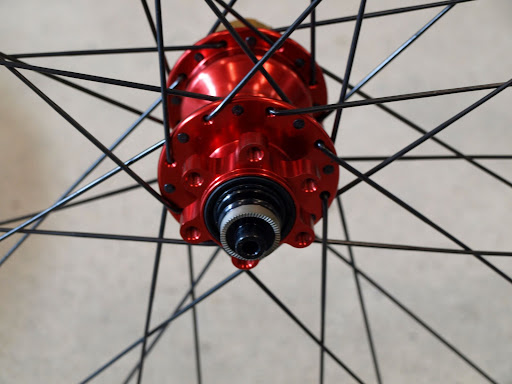

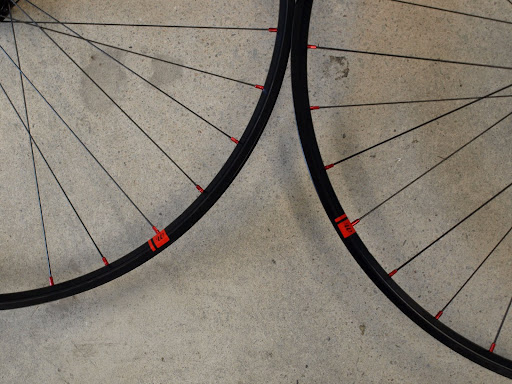

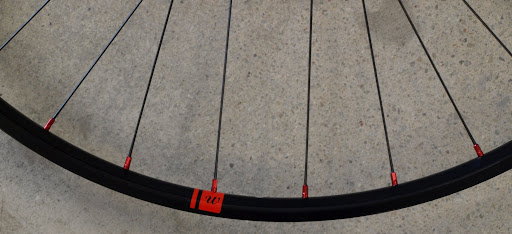

Red Pro2 hubs are matched to alternating black and red spoke nipples – a personal favorite of mine.

Spokes are a combination of DT Swiss double butted Revolutions and Competition to ensure the right balance of stiffness and light weight for Lachlan.

As with all the Stan’s wheels I build these are fitted with tubeless tape and valves and will arrive in Auckland ready for use with either standard tubes or tubeless.

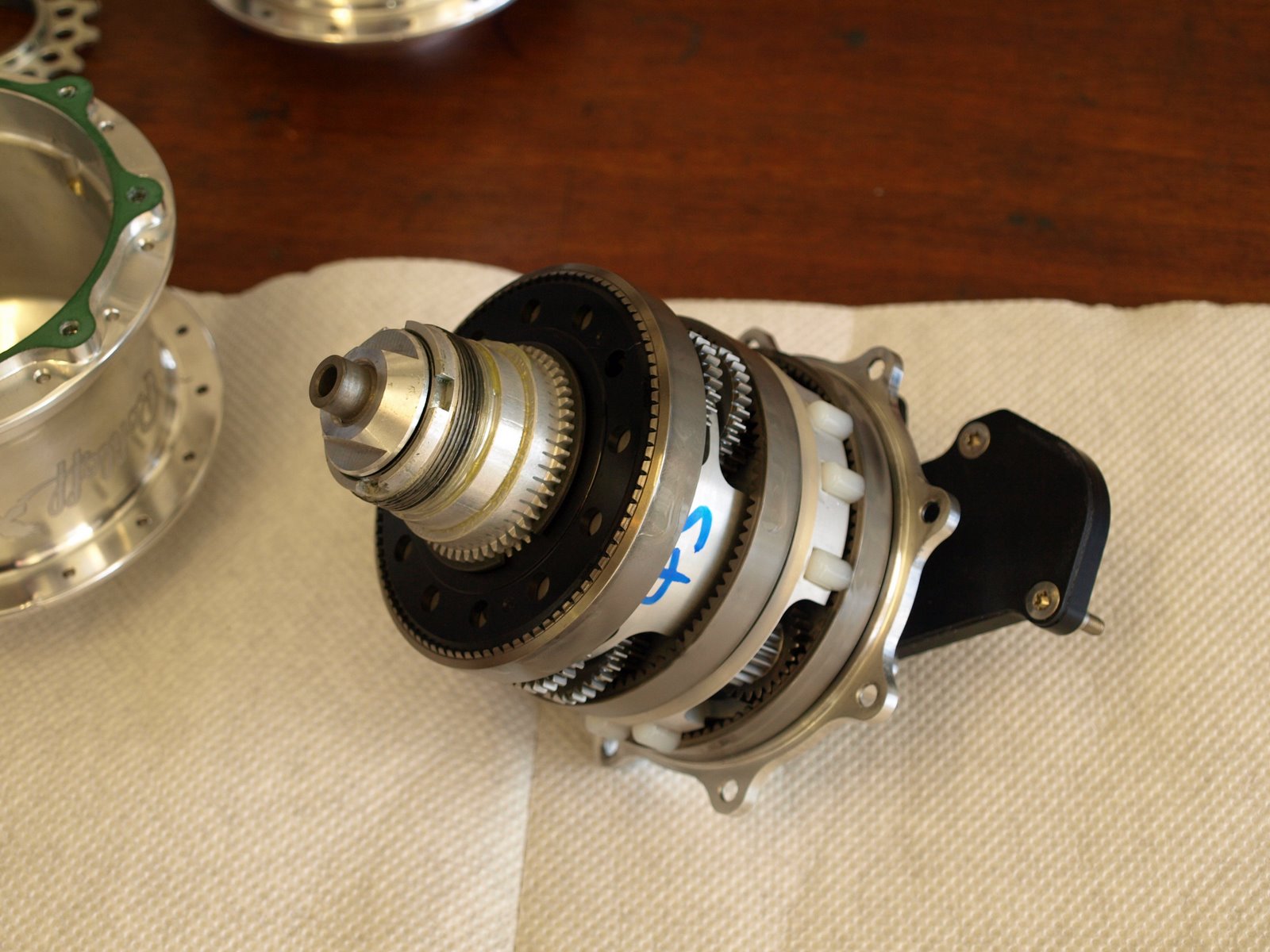

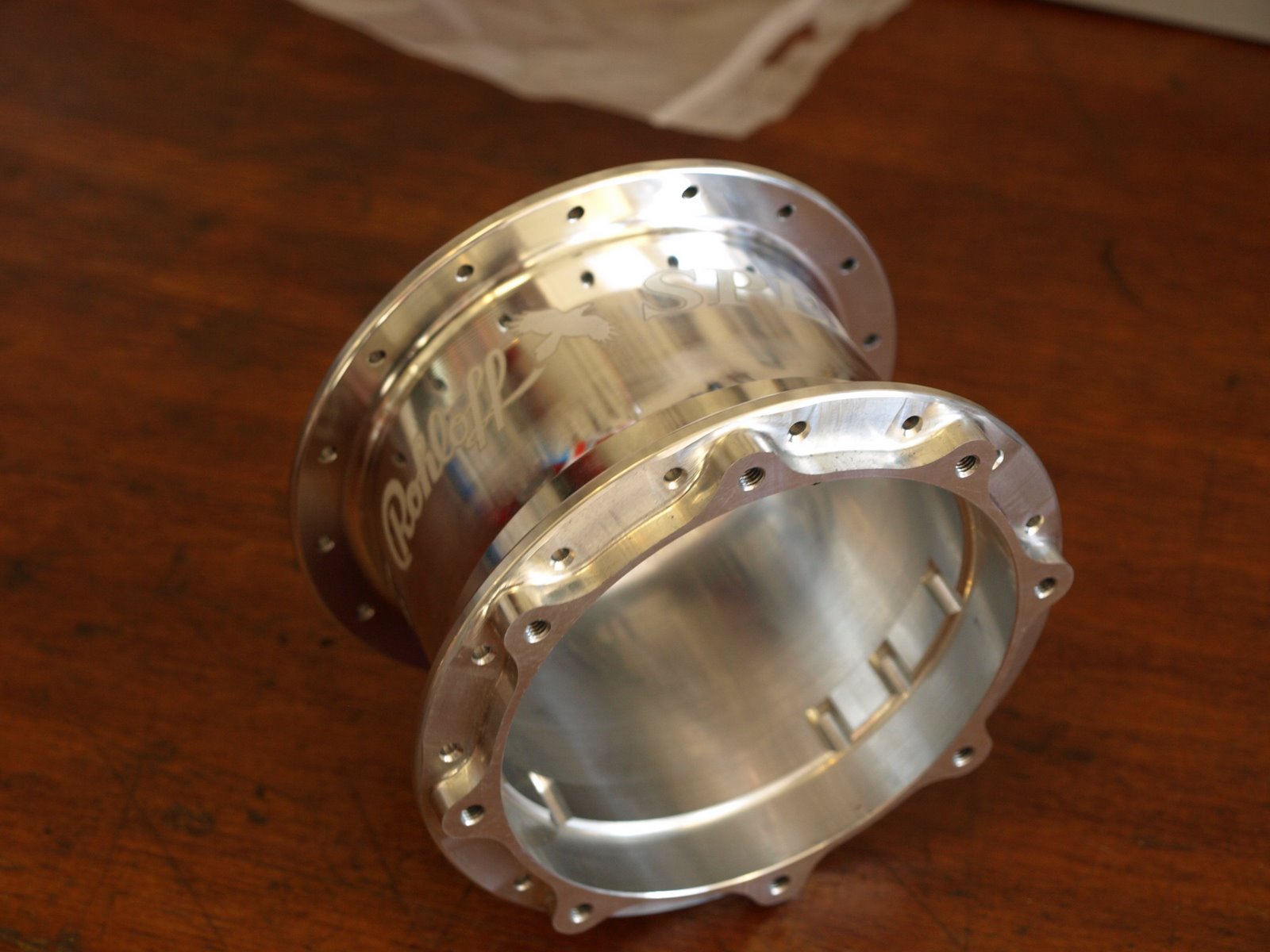

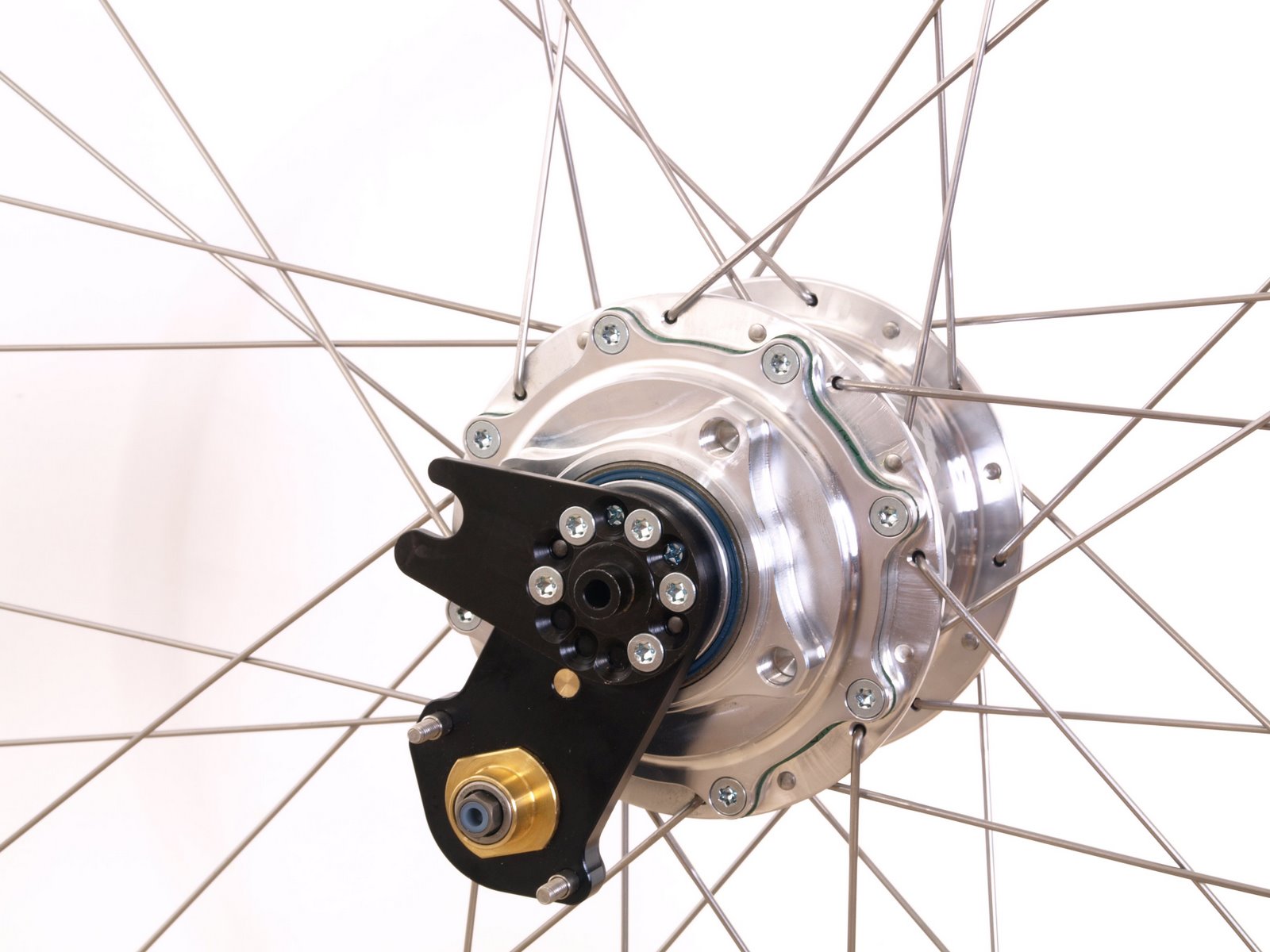

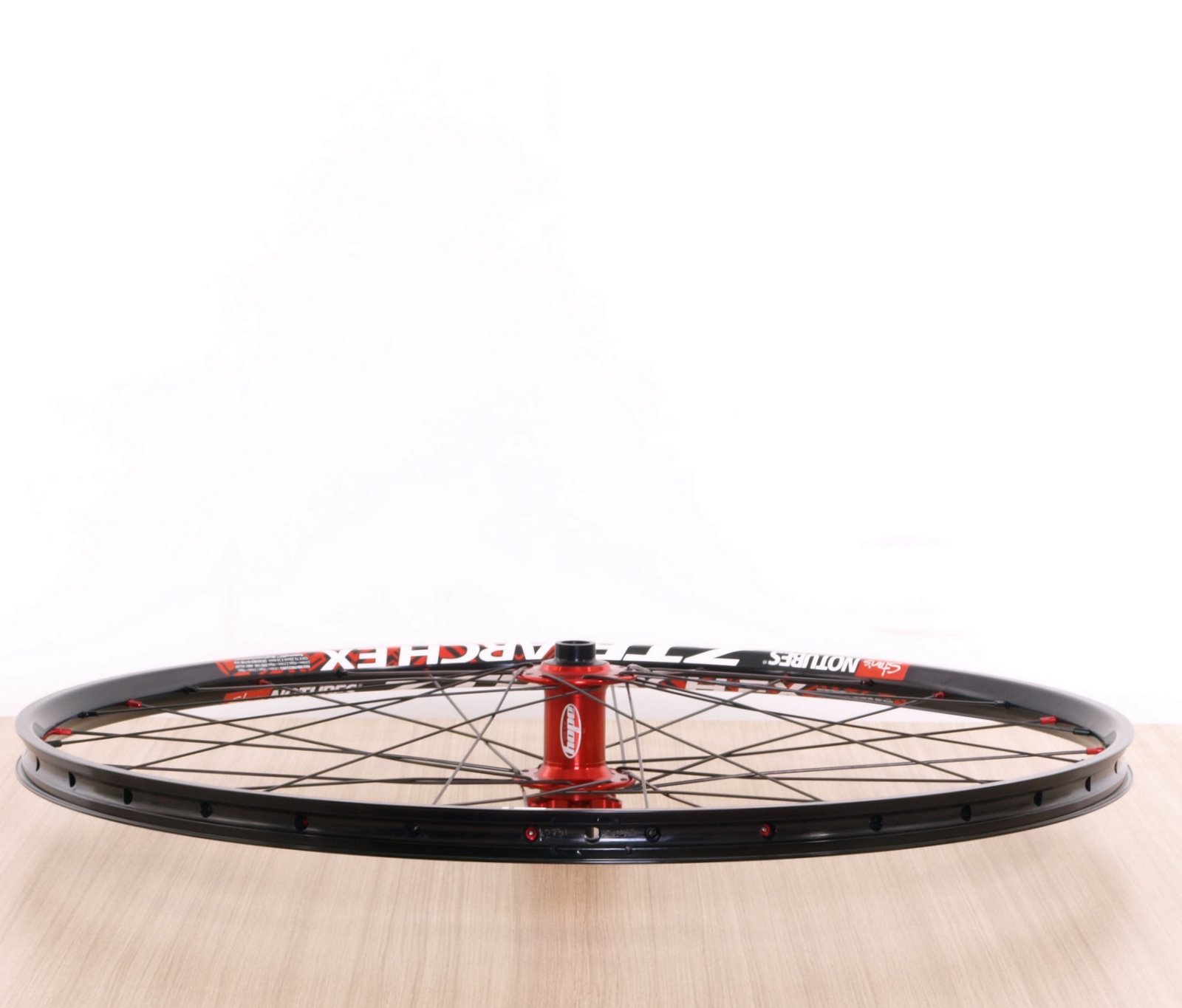

Red Rohloff laced to Arch EX

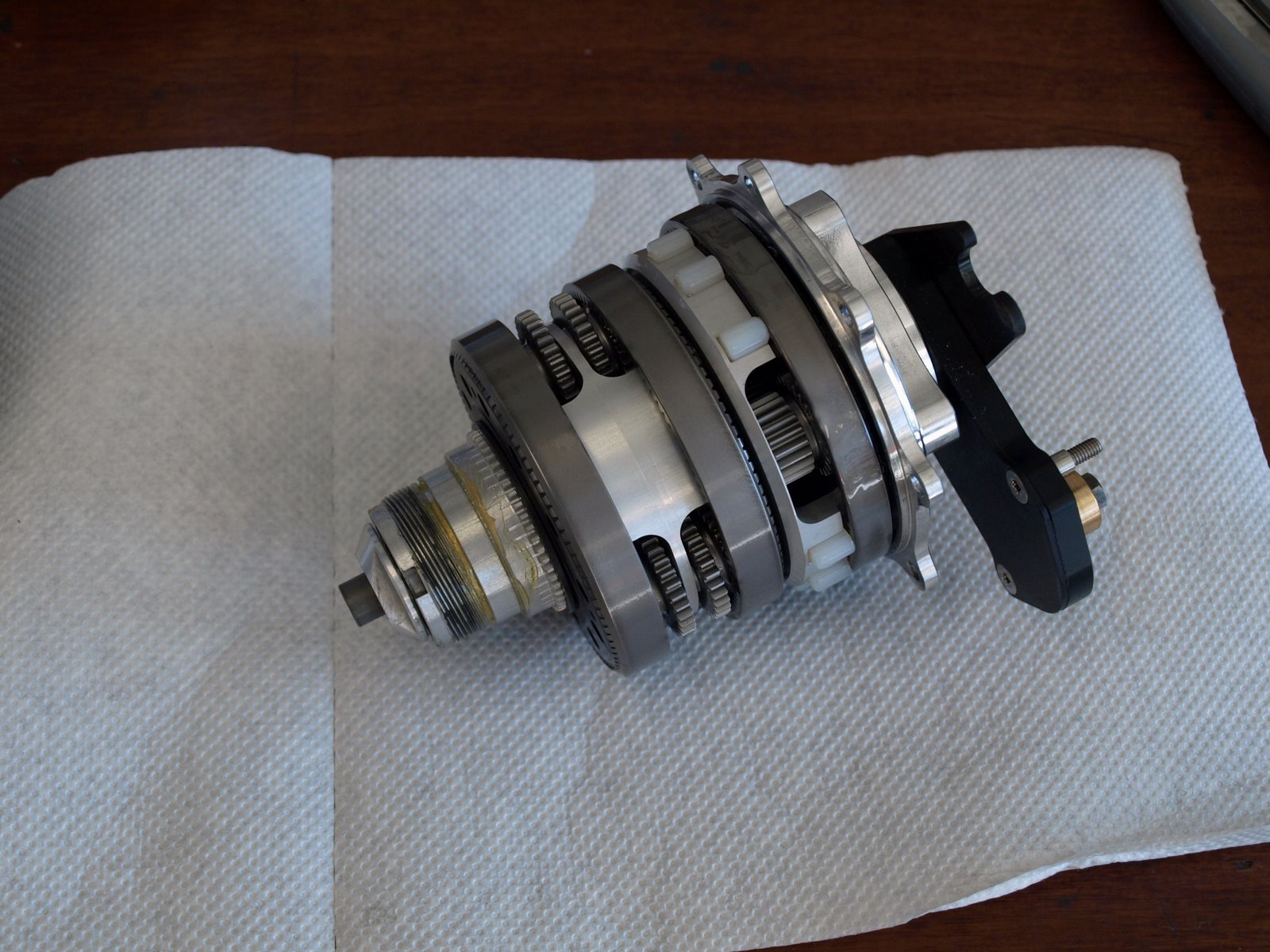

This 14 speed Rohloff hub is off to New Zealand importer PureSports for one of their lucky customers.

The new Stan’s Arch EX rim takes the outer dimensions of the excellent Crest rim and adds an internal brace to stiffen the rim. This version is lighter than the old Arch, and a slightly wider.

DT Swiss Competition spokes and brass nipples build a durable, long-lasting wheel.

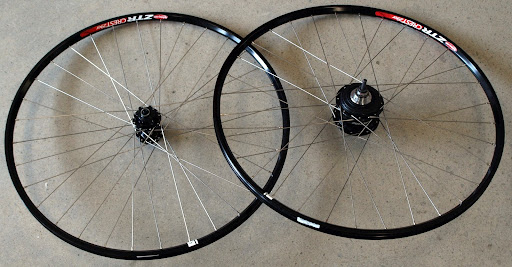

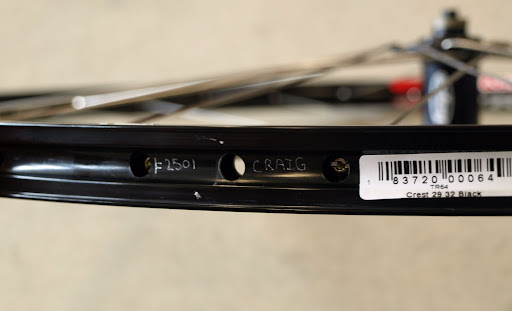

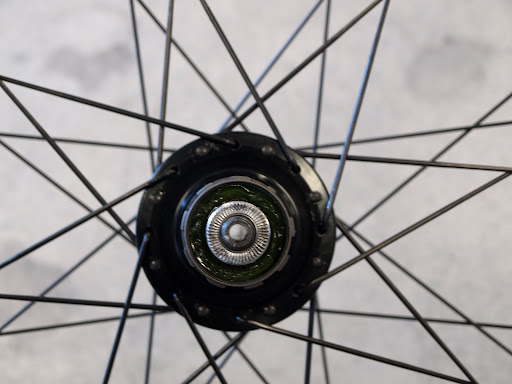

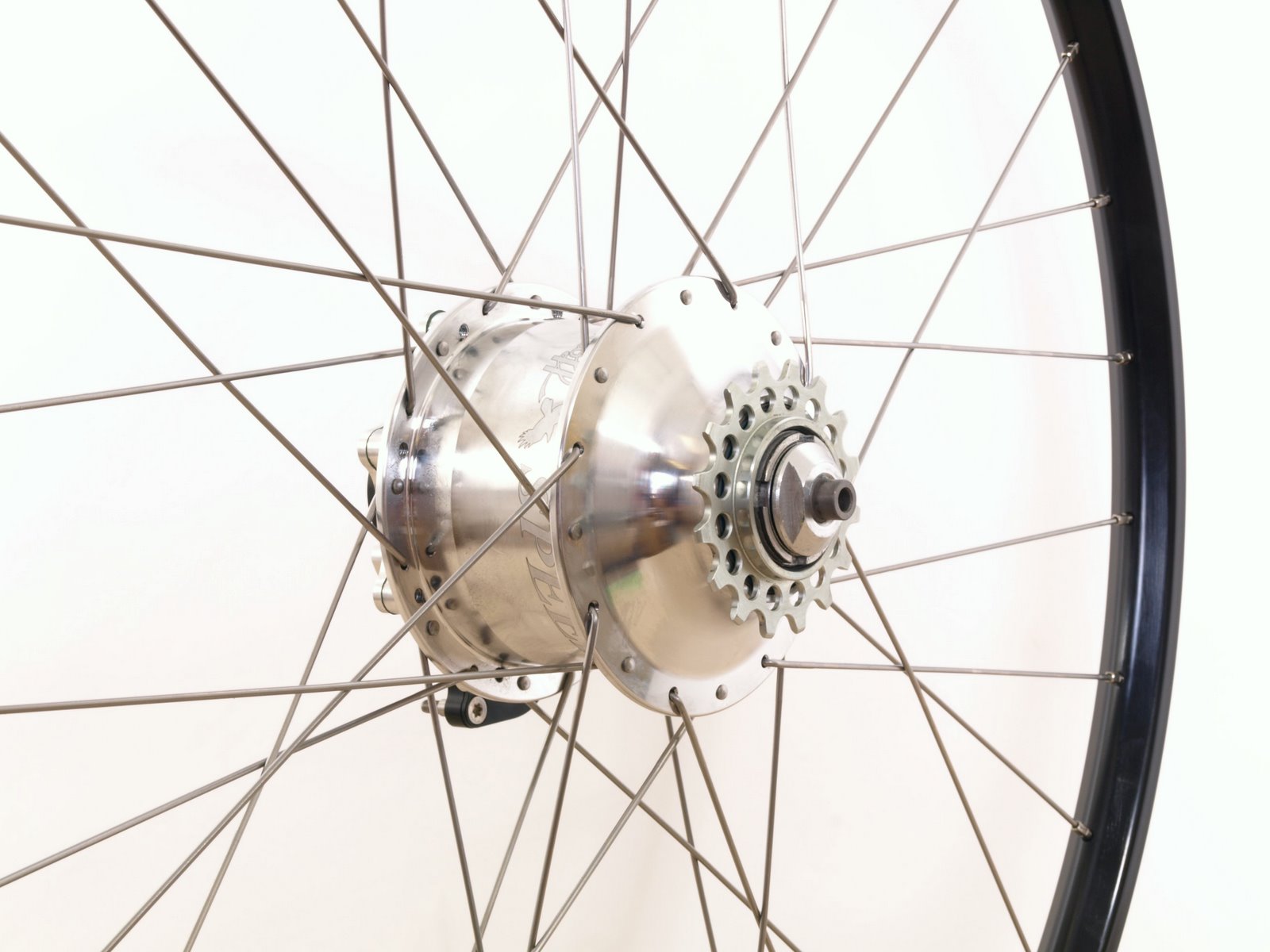

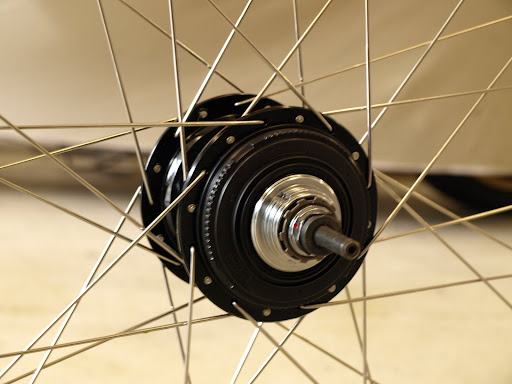

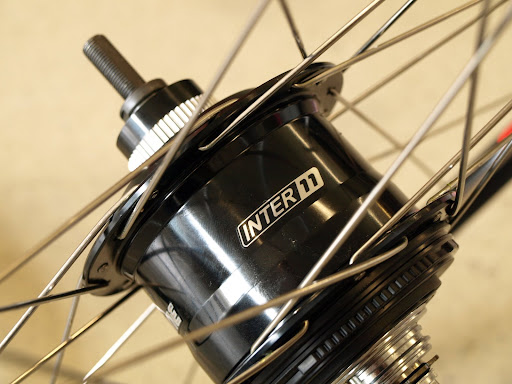

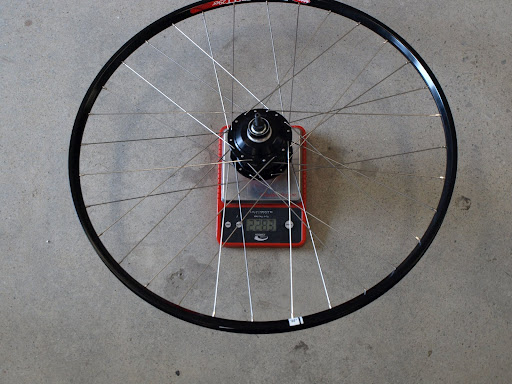

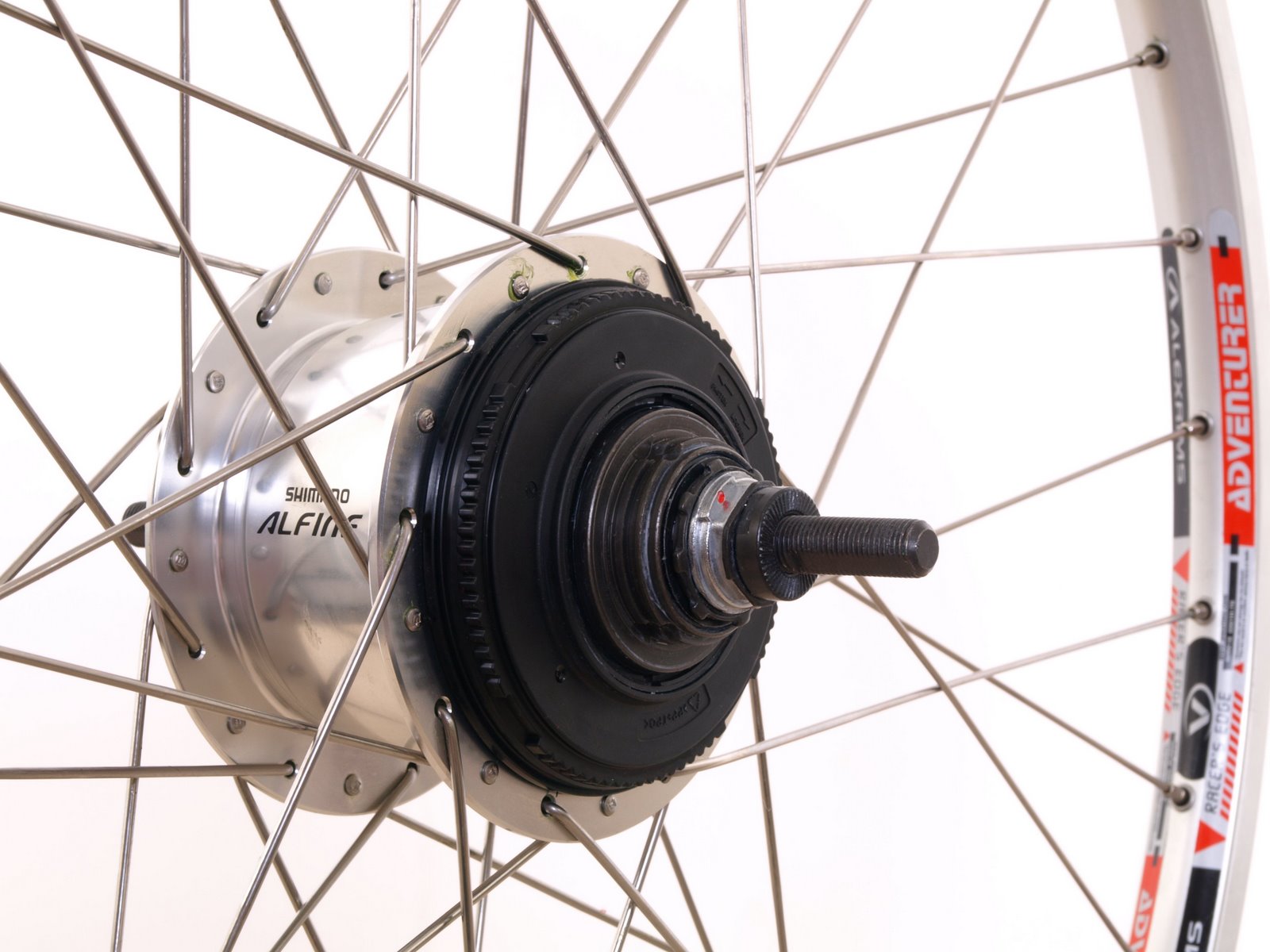

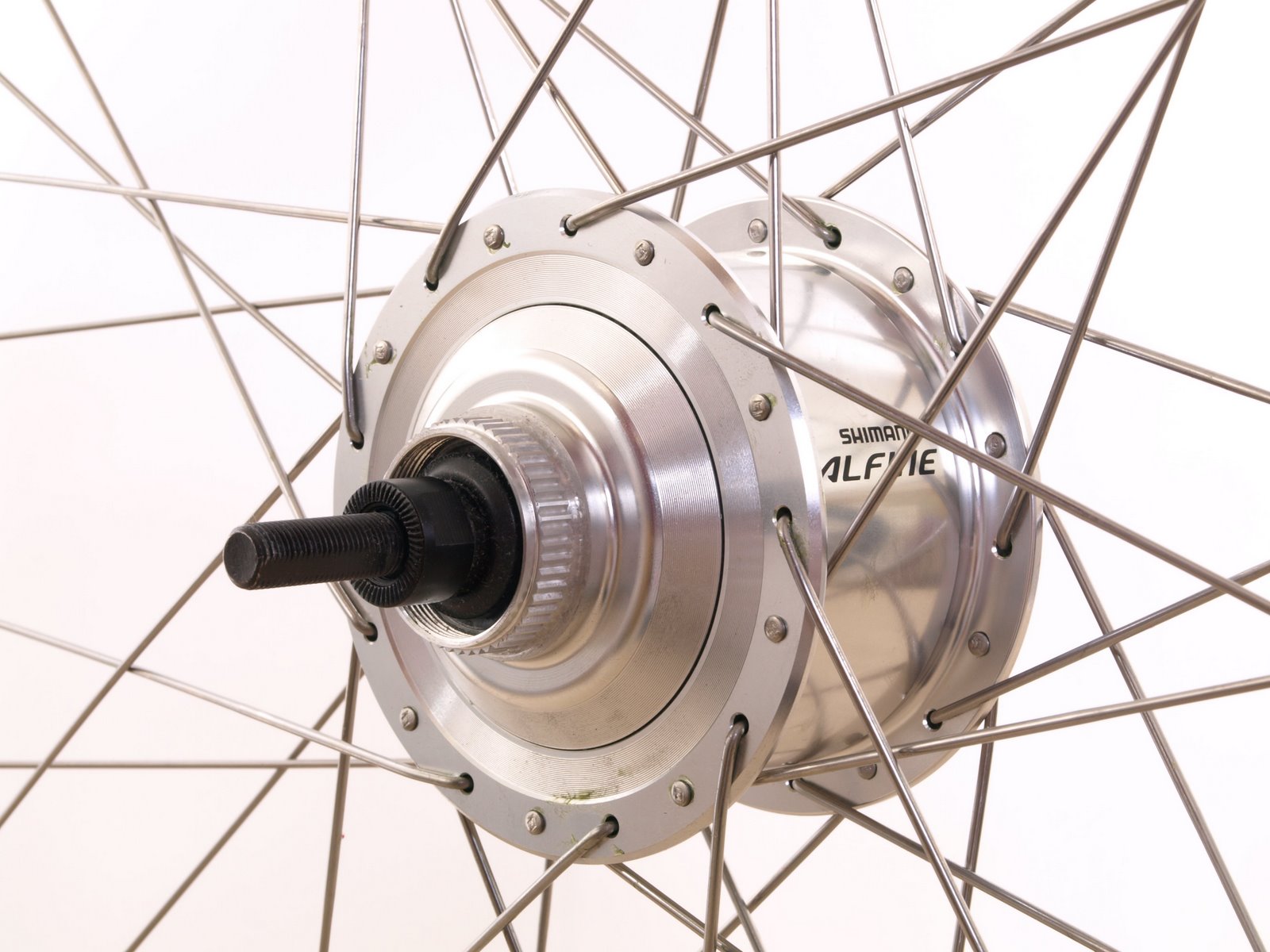

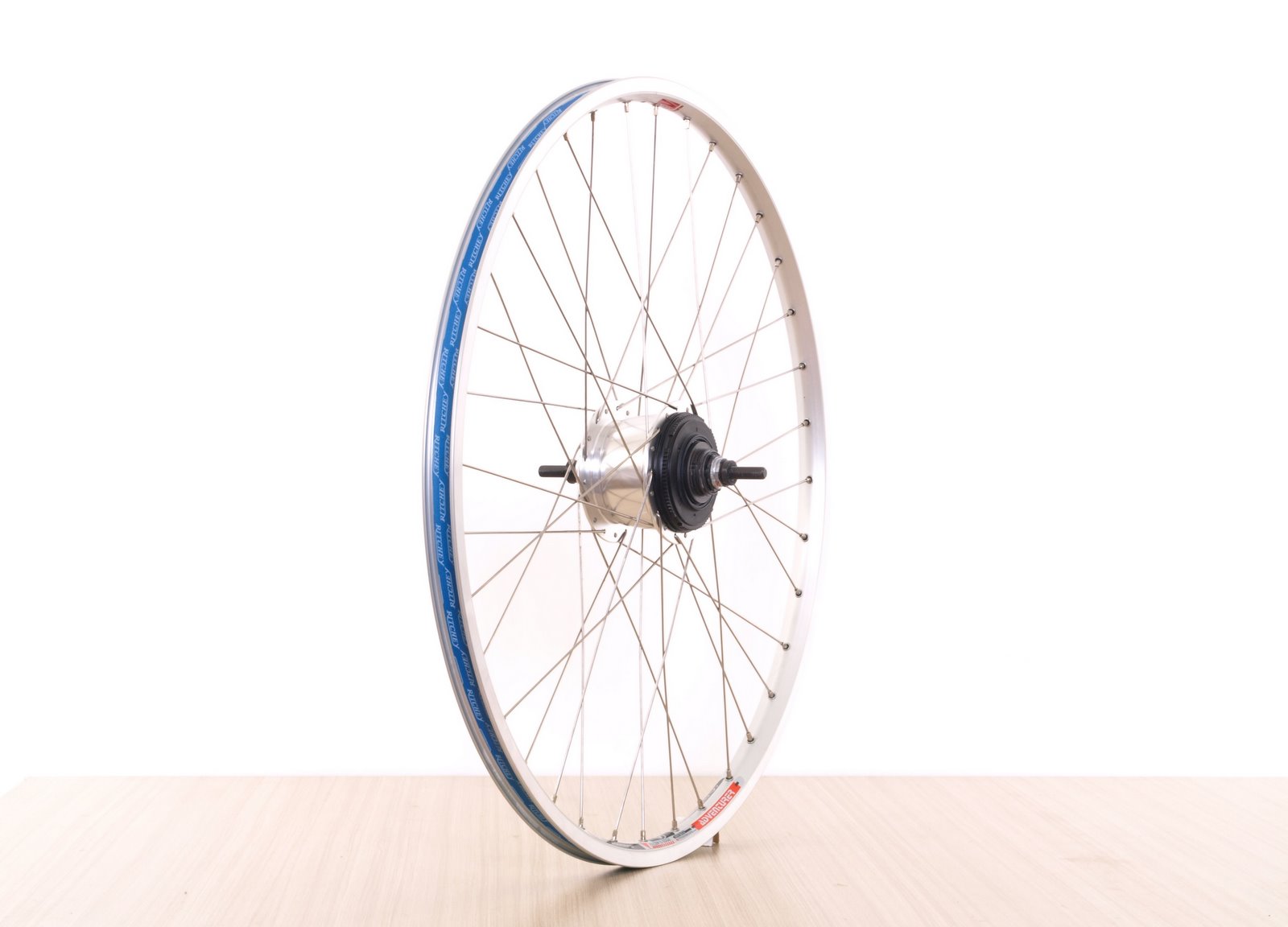

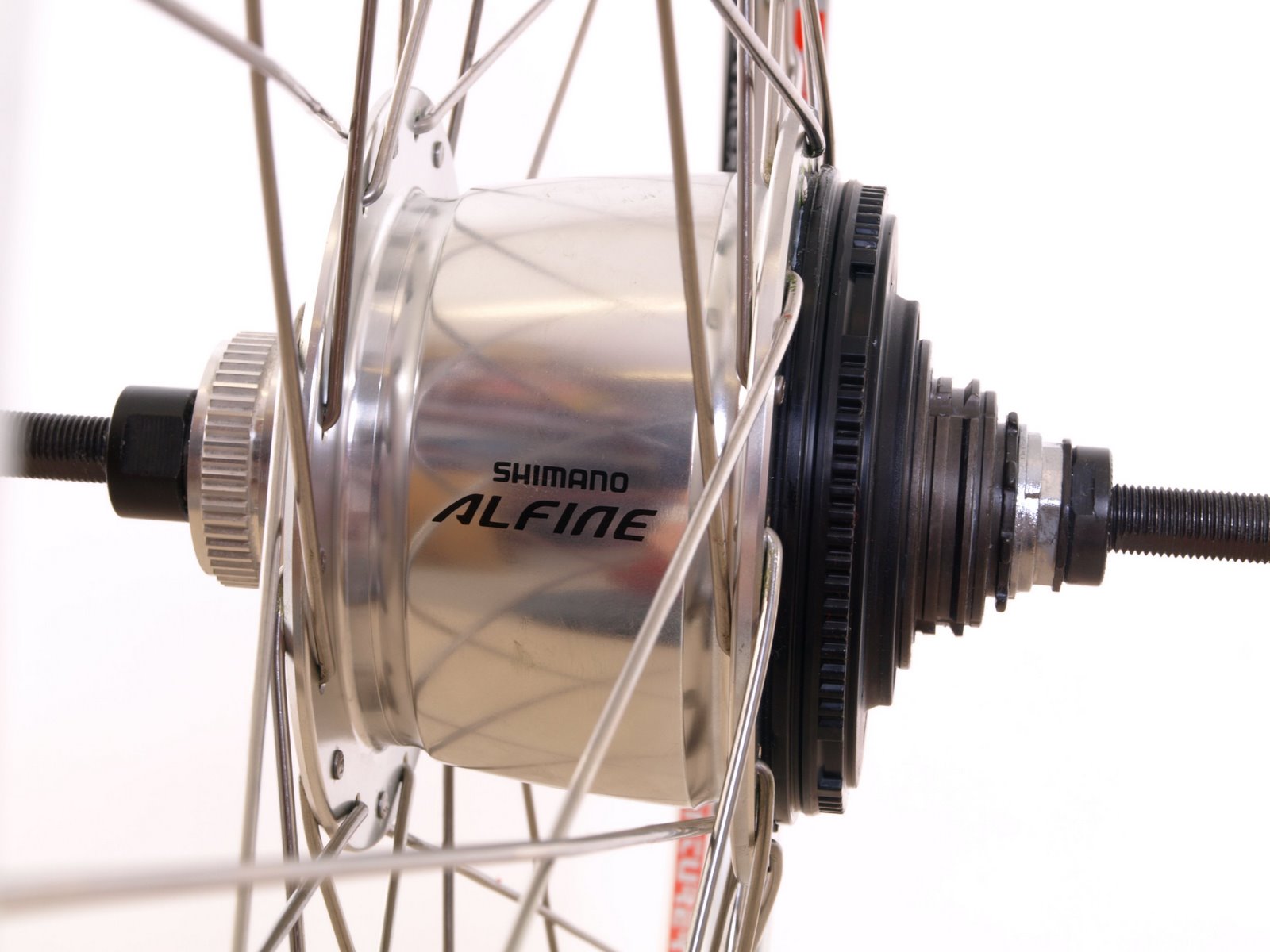

Craig’s Alfine 11 speed and Pro2 laced to Crest rims

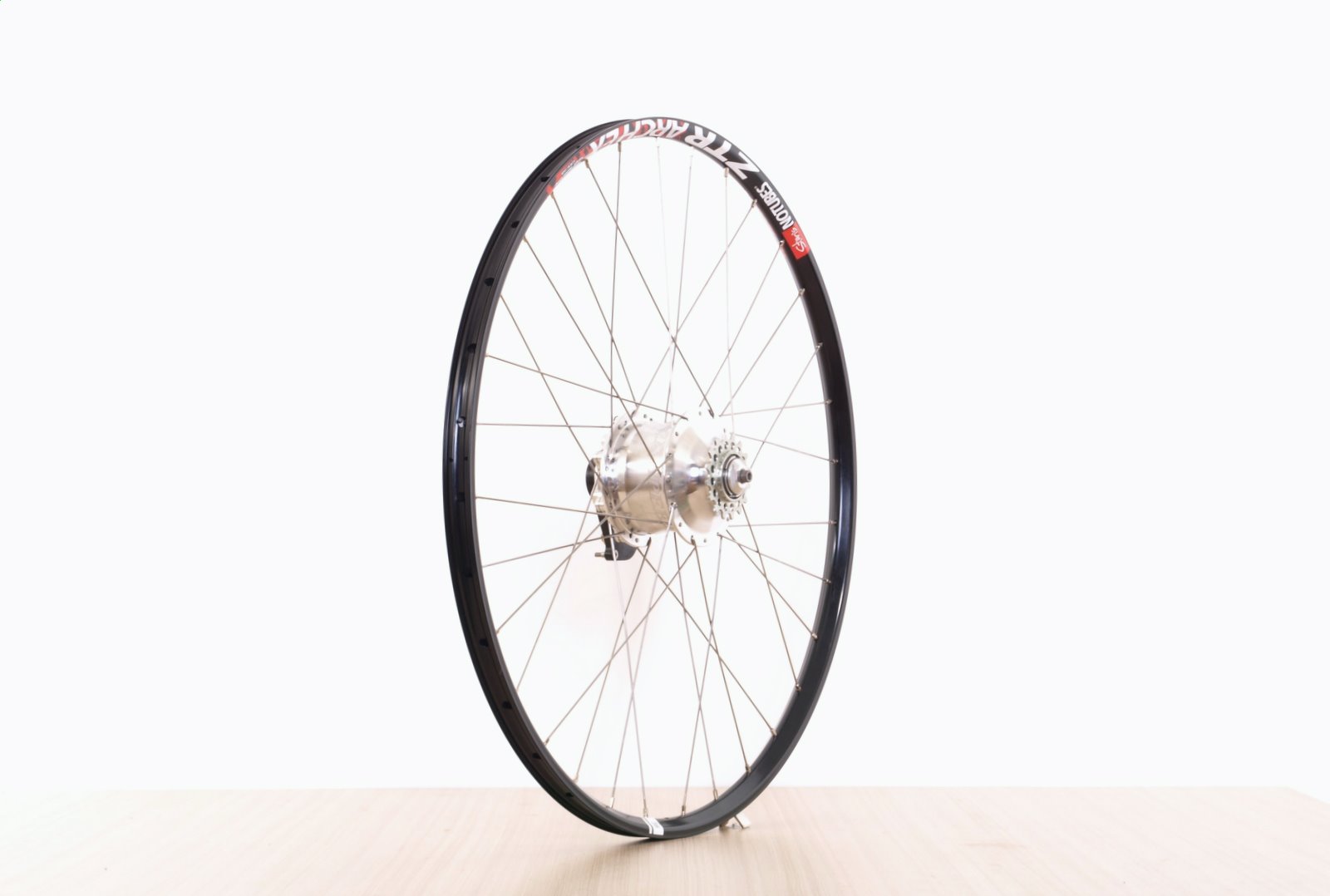

Craig selected Crest rims and an Alfine 11 speed rear hub to make an ultimate do-all mountain bike / commuter wheelset for him and his wife to use in Mt Manganui.

I laced these wheels up with DT Swiss Competition spokes and brass nipples on all four corners.

As with all Wheelworks wheels they’re true to less than a tenth of a millimeter (that’s about the width of a strand of hair) and should stay that way for a long time to come.

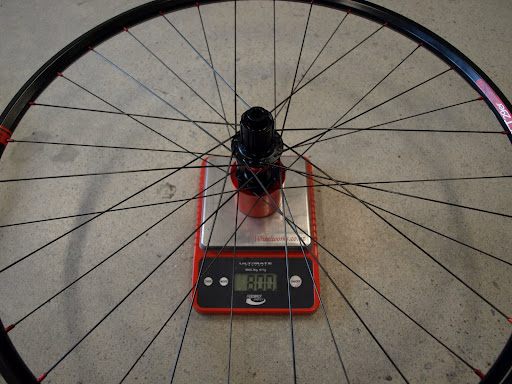

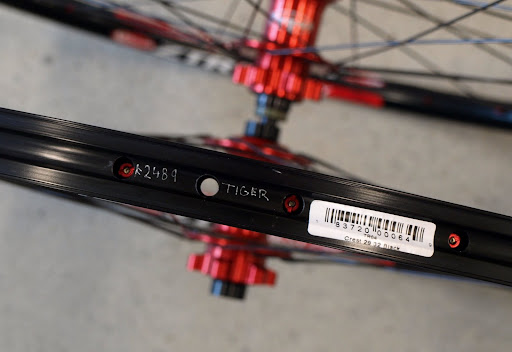

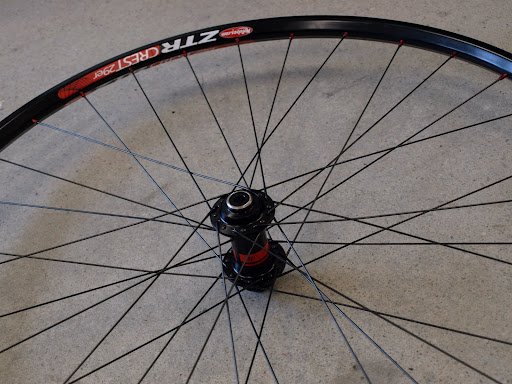

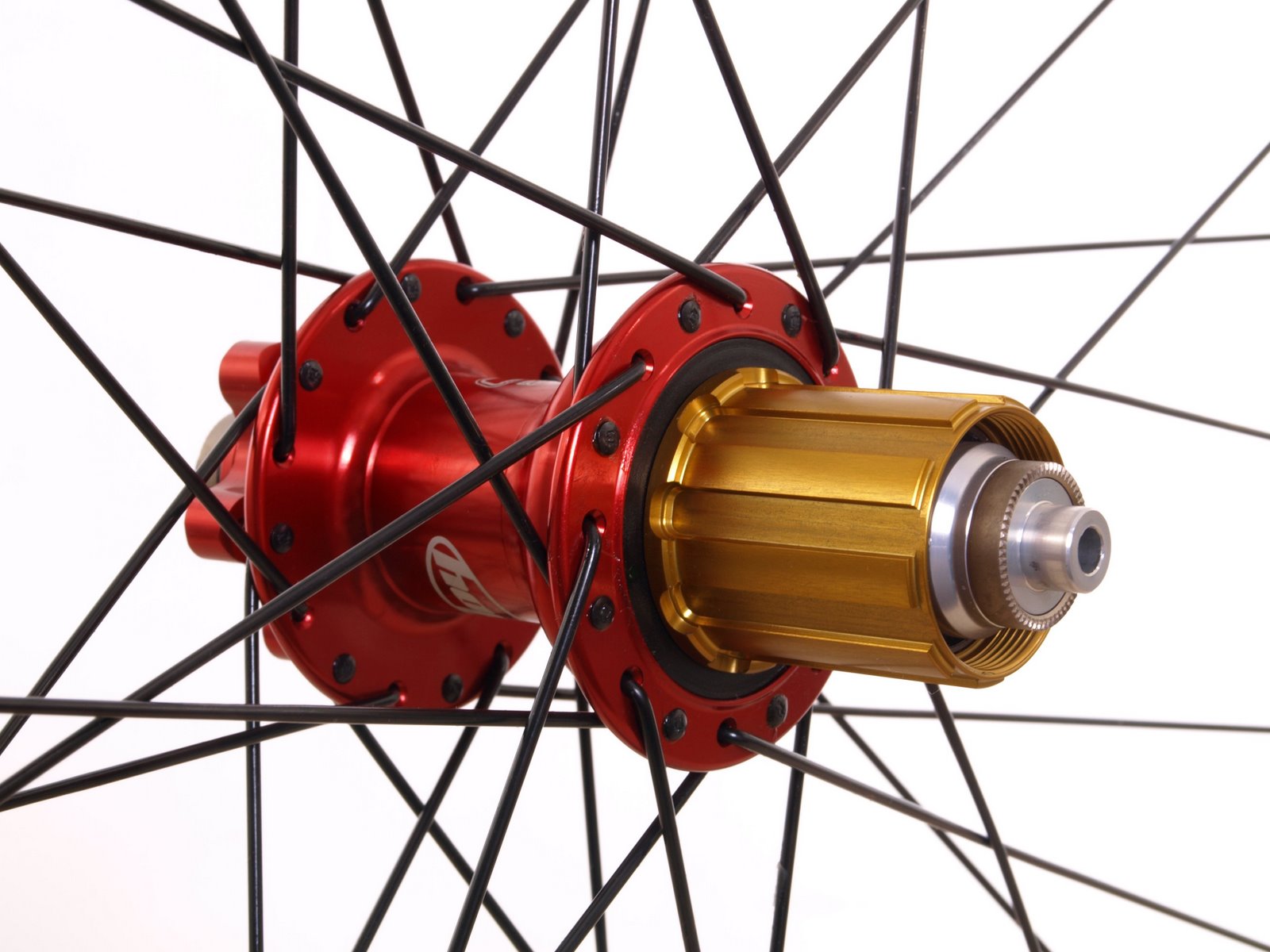

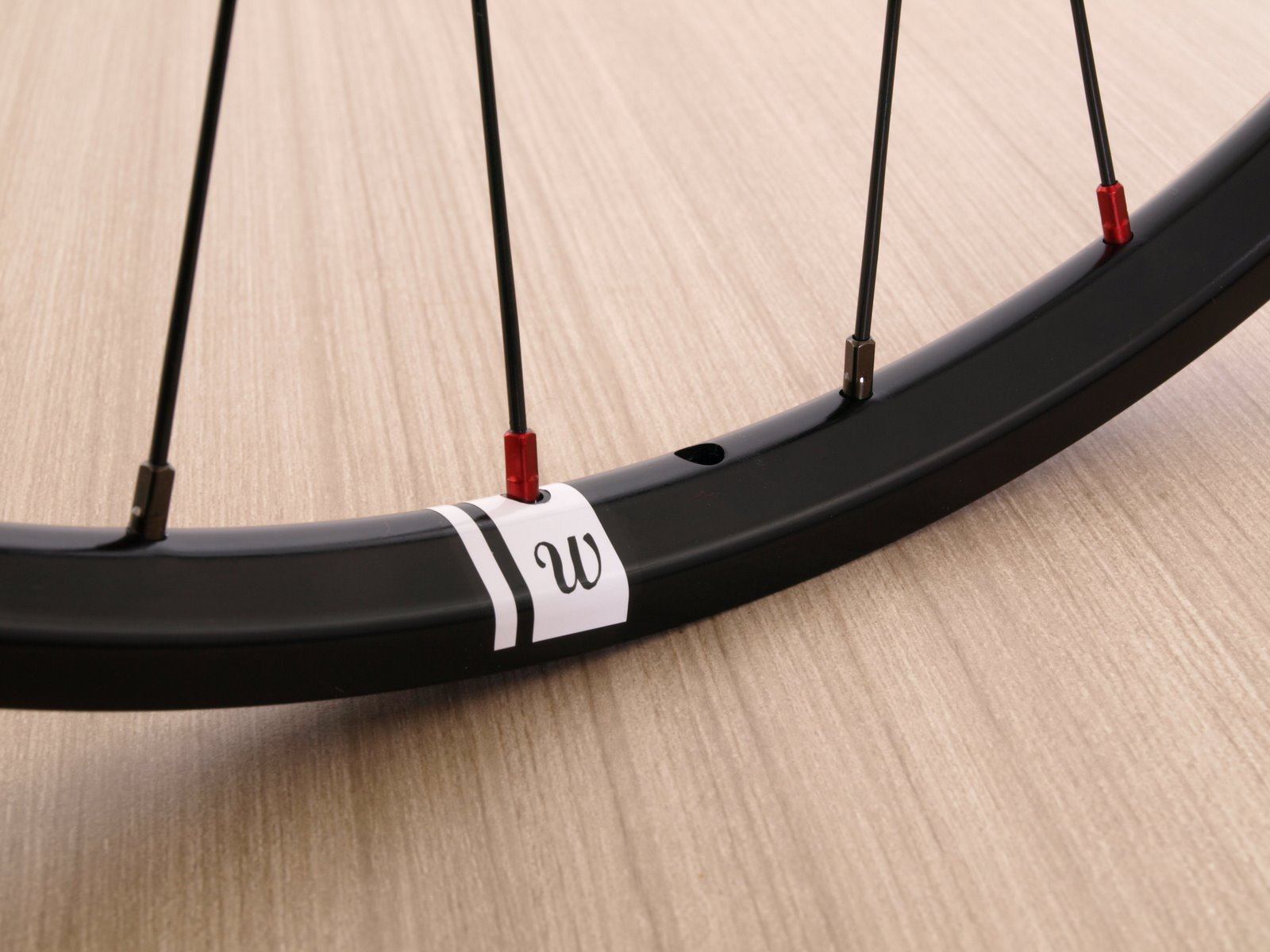

Tony teh Tigers Pro2 and Crest rims

These Pro2 hubs and Crest rims are destined for the new Niner of Bushloves’ Tony teh Tiger.

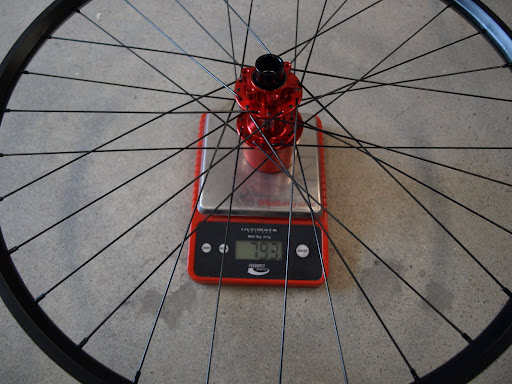

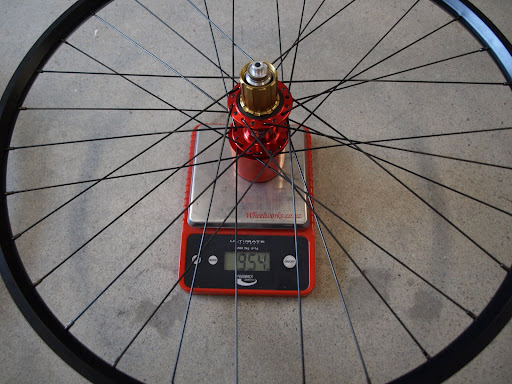

Based on Tony’s weight and his gram-counting nature I use DT Swiss Revolution spokes for the front and rear non-driveside, and stiffer Competition spokes for the driveside. It doesn’t matter how light the wheel is if it doesn’t go where you point it, and these stiffer spokes really help.

Red aluminium nipples match the hubs perfectly and look great.

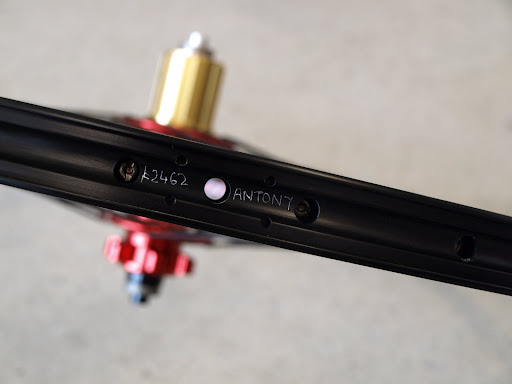

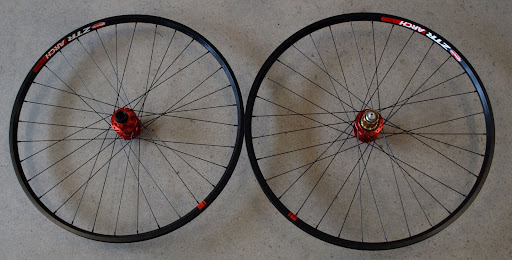

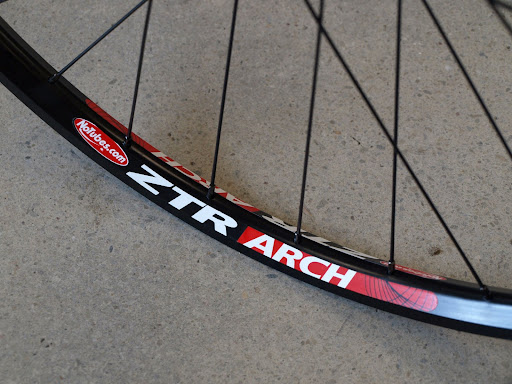

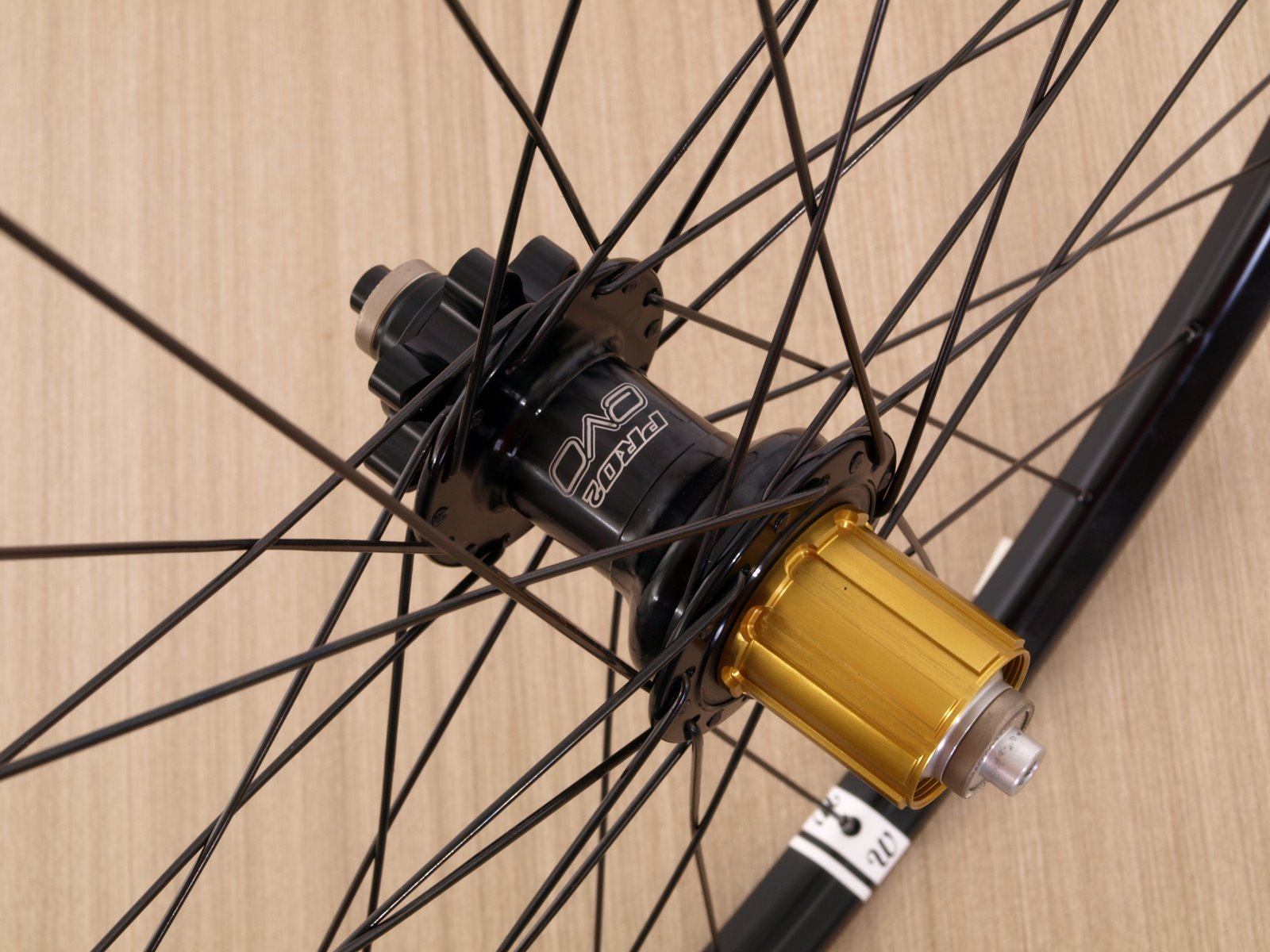

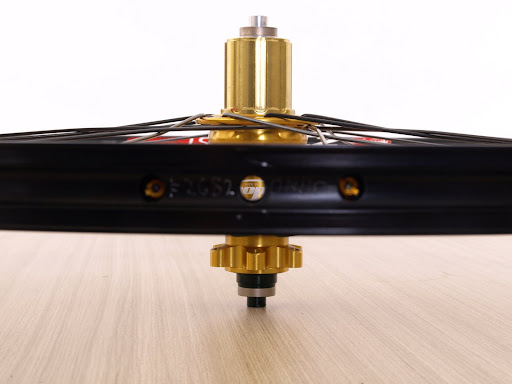

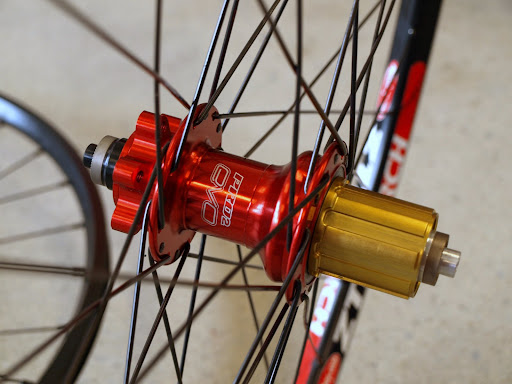

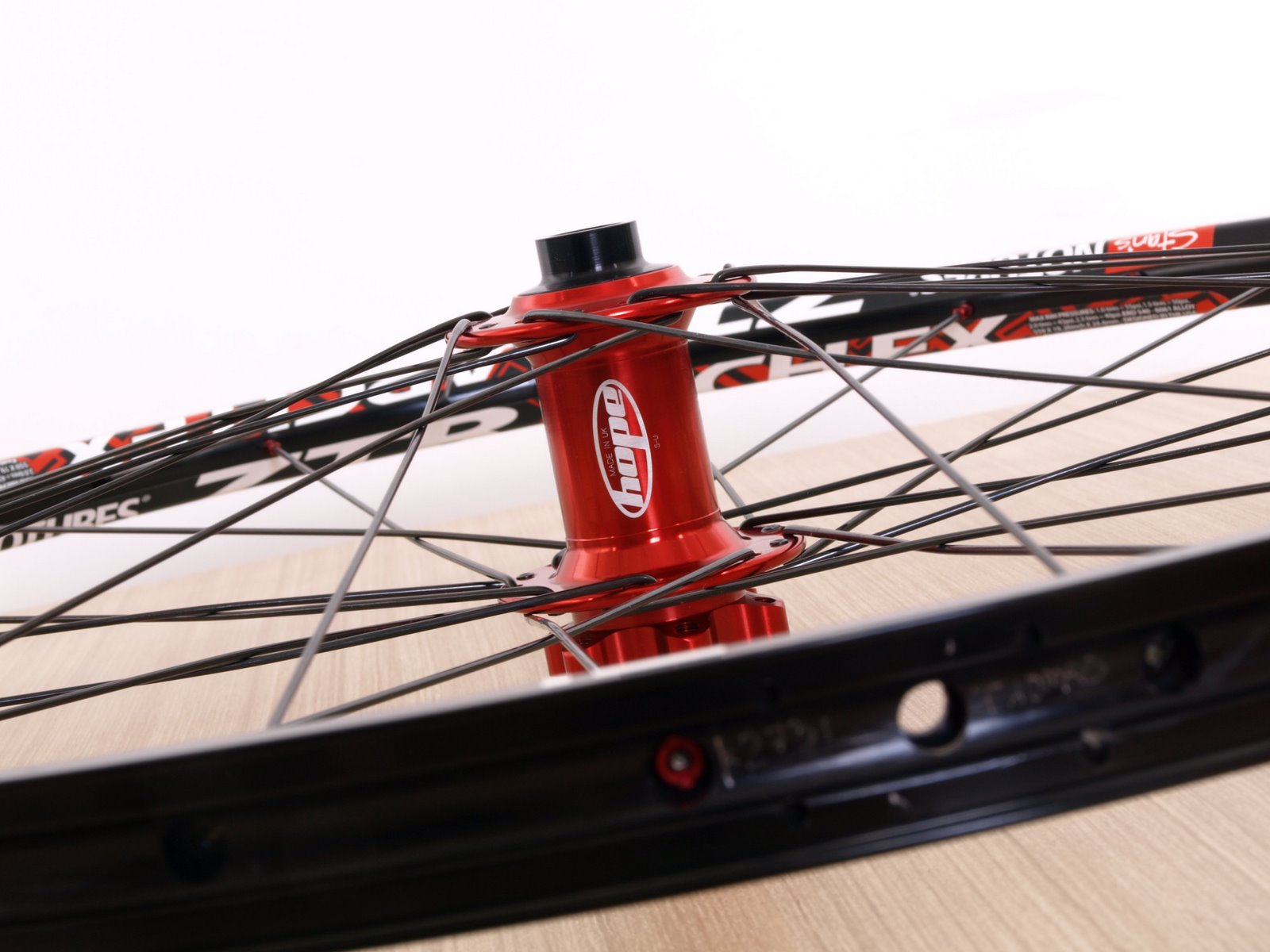

Antony’s Pro2 hubs and Arch rims

Antony wanted a new pair of wheels to use on Nelson’s technical trails for his SantaCruz Nomad. Wheelset stiffness was paramount while keeping the weight down as low as practical without giving up durability.

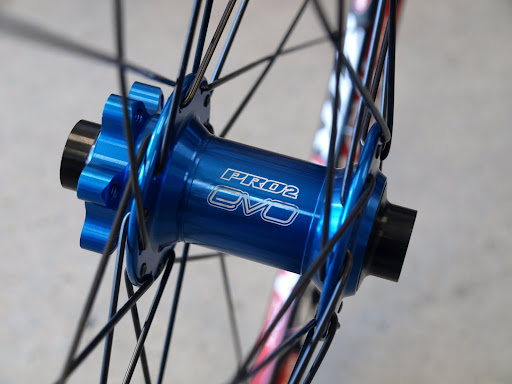

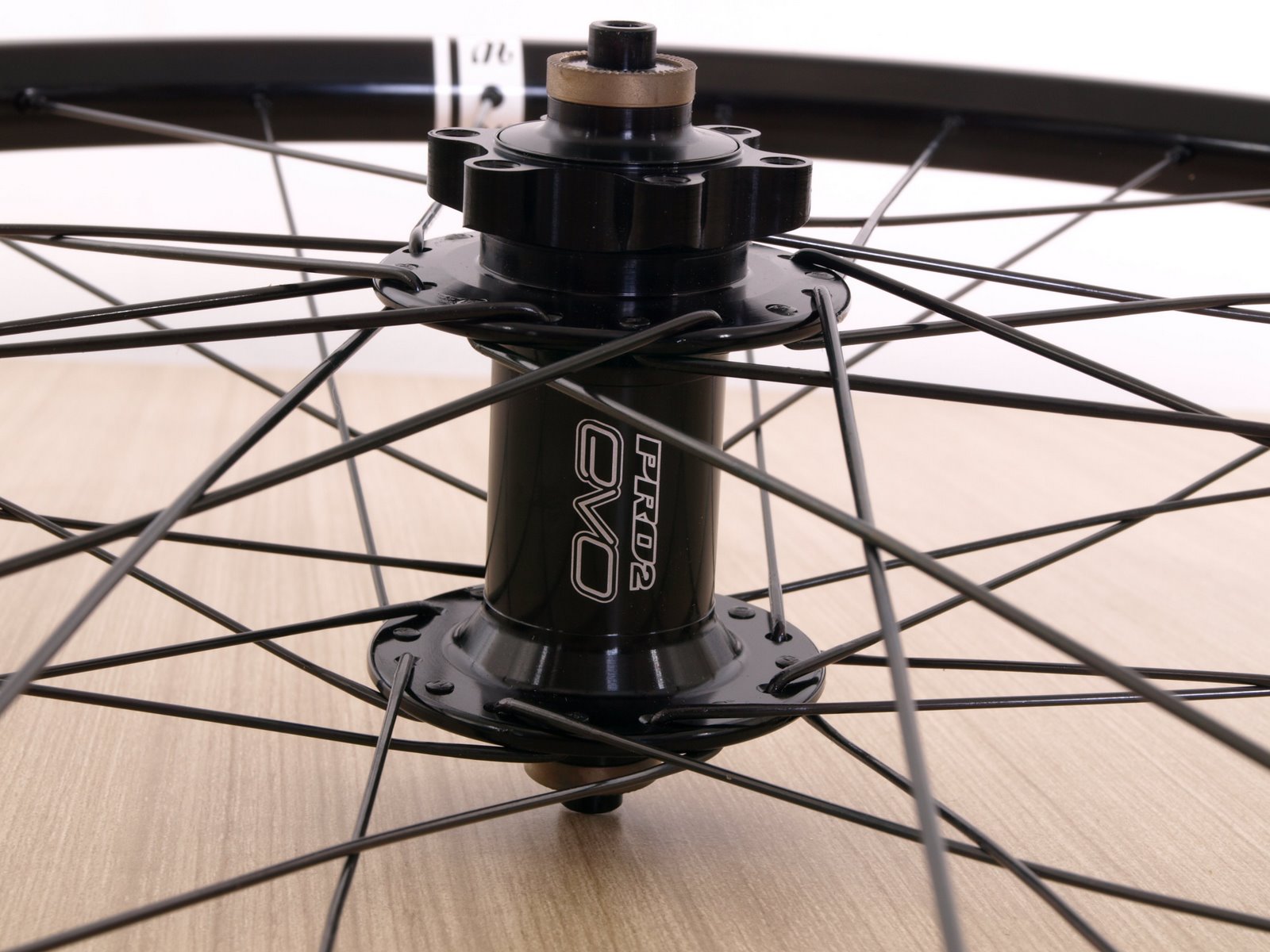

Hope Pro2 EVO hubs were used for their awesome long term durability and future proof axle setup.

Stan’s Arch rims are a very stiff rim which is well suited to freeride tyres up to 2.4″ in width.

I laced both wheels with double butted DT Swiss Competition spokes to add stiffness. The front spoke nipples are aluminium to save weight, and the rear are brass.

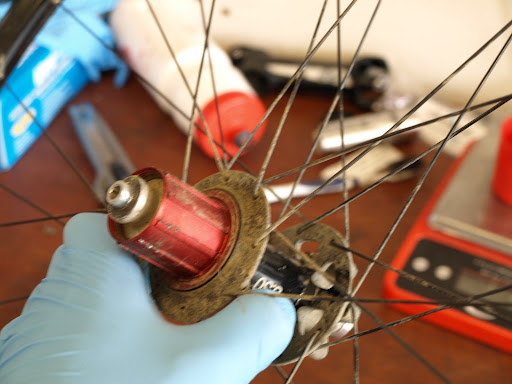

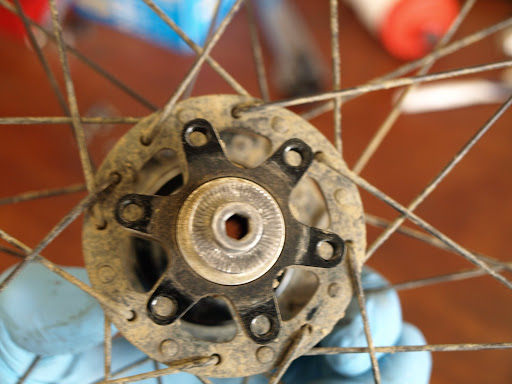

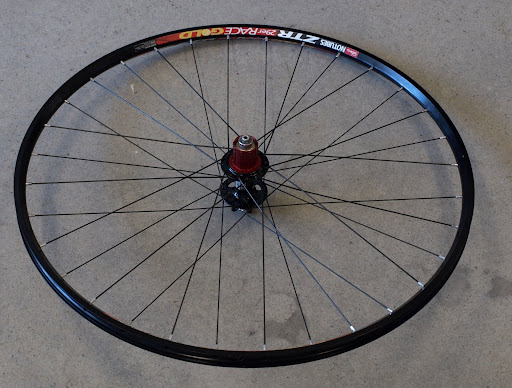

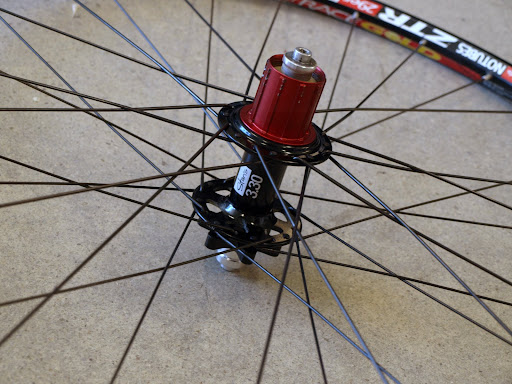

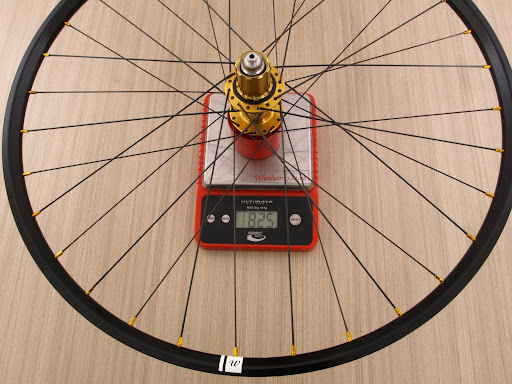

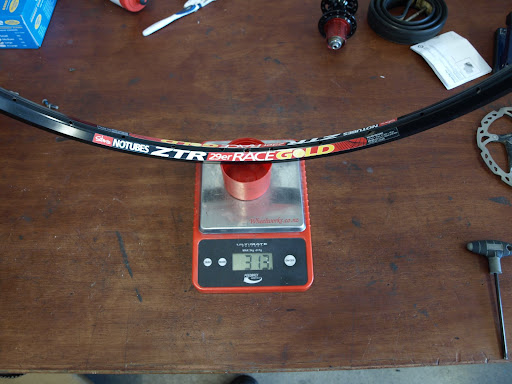

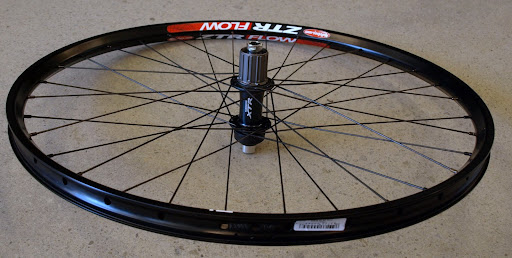

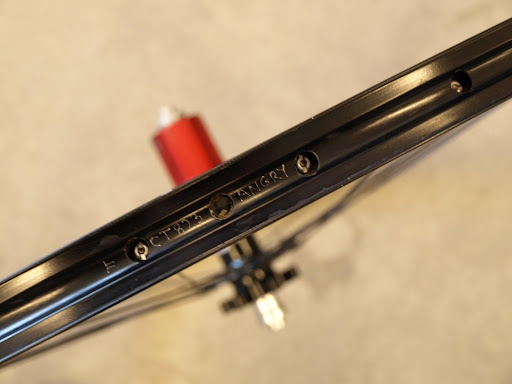

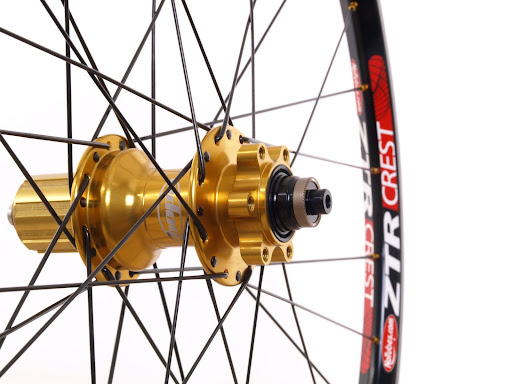

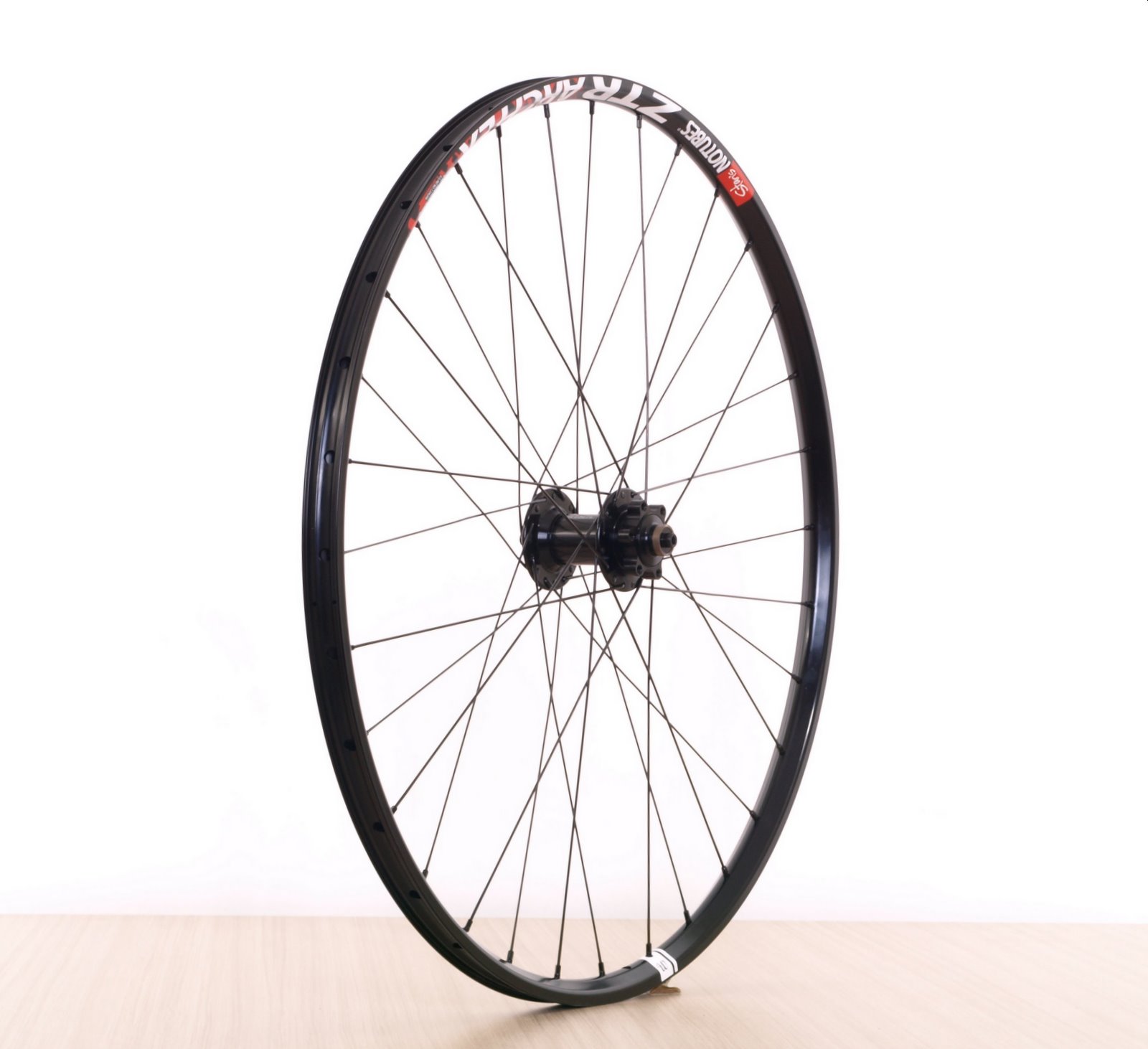

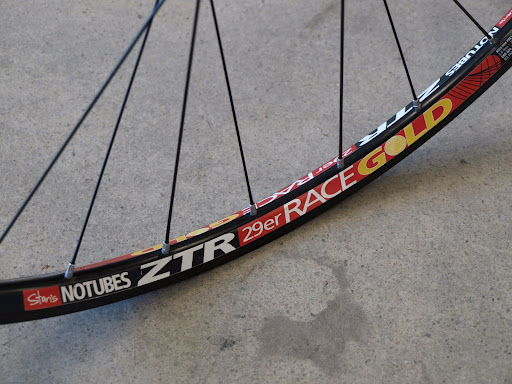

Angry Clive’s ZTR Gold 29er rebuild

Angry Clive’s ZTR Gold 29er rear wheel needed a full re-build with new spokes and spoke nipples.

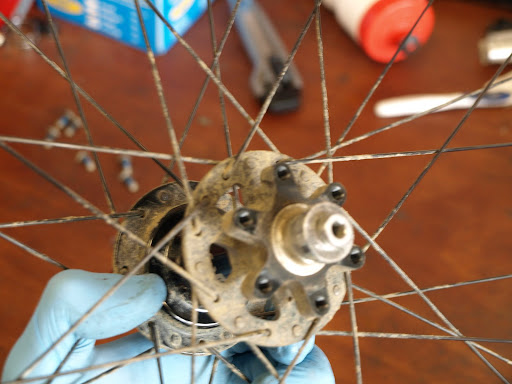

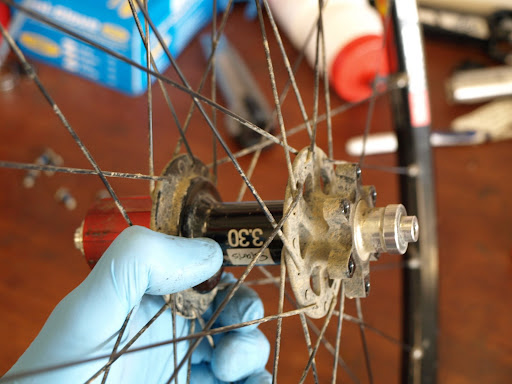

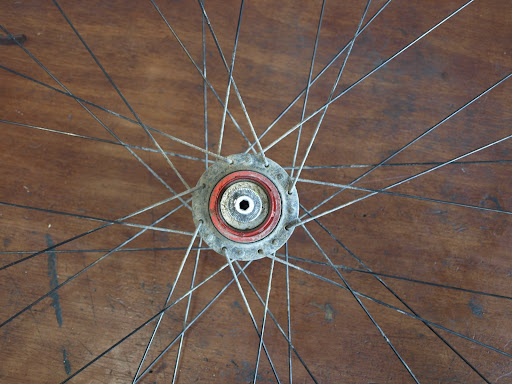

For all rebuilds I take some before photos in case I need to reference anything like the valve hole position, details of the lacing pattern etc. Normally these photos are in focus :-)

A combination of DT Swiss Competition and Revolution spokes will add some stiffness to the factory wheelbuild, at a weight increase of 32 grams.

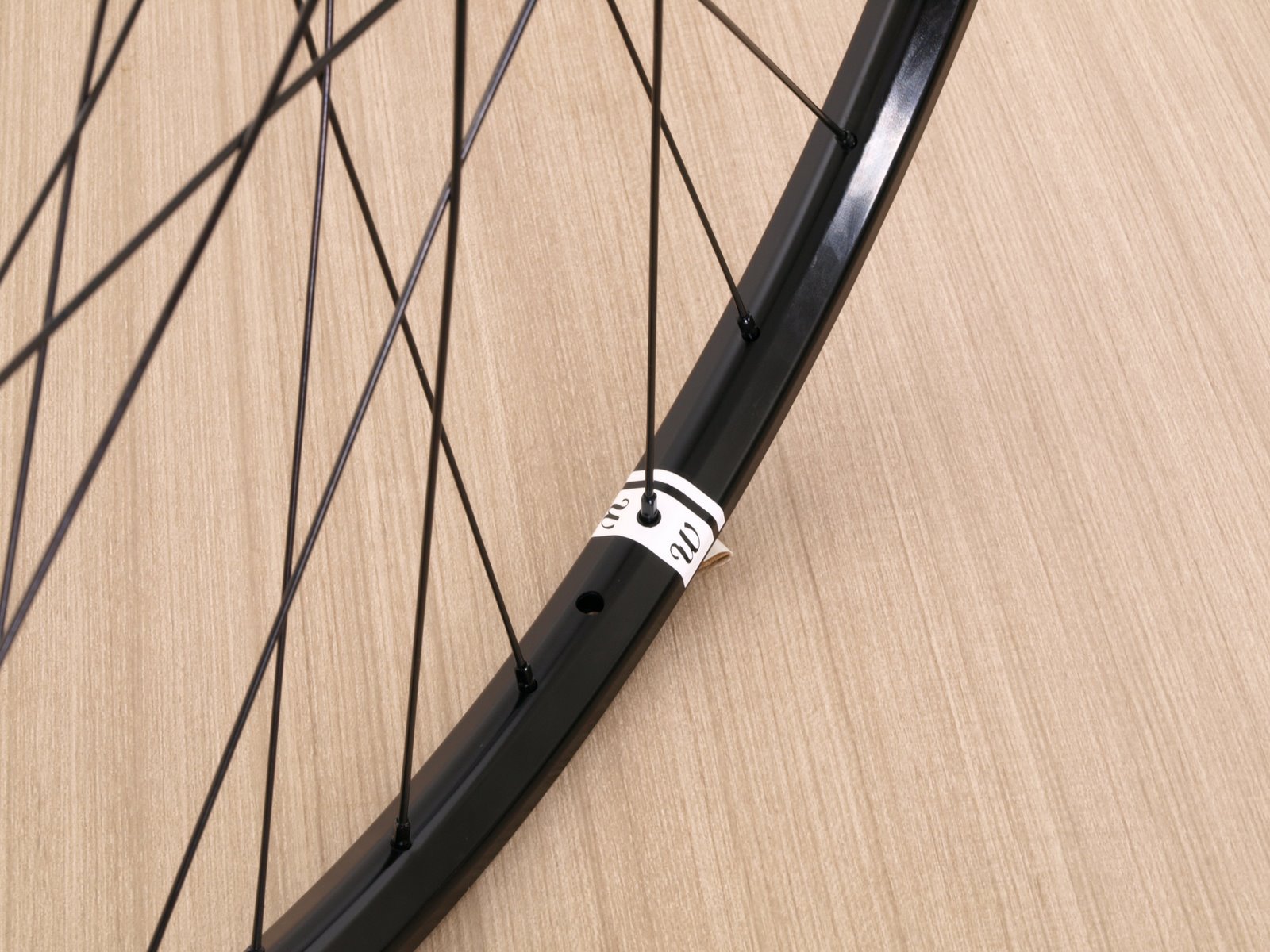

Aluminium spoke nipples keep things light and right.

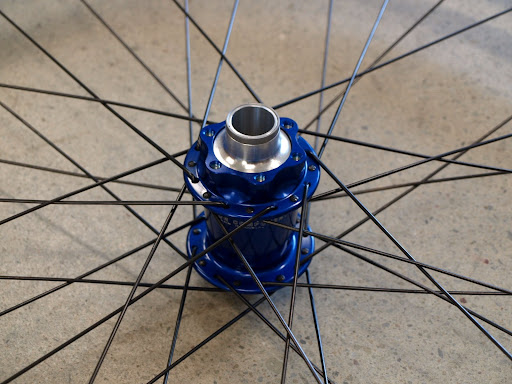

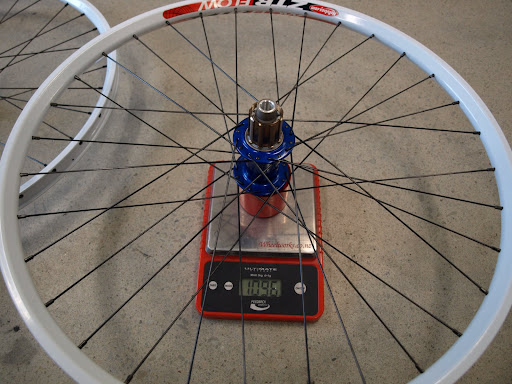

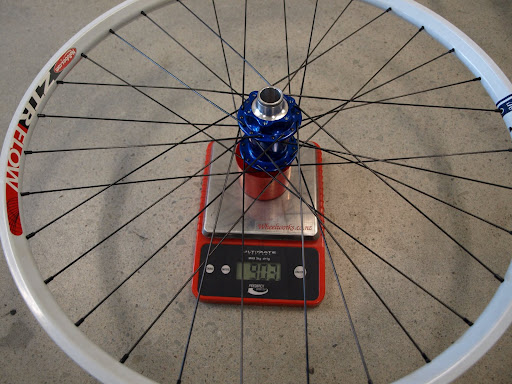

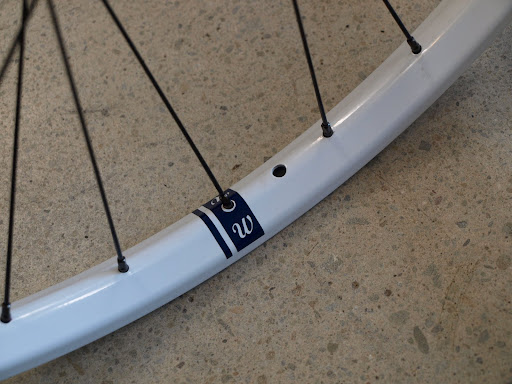

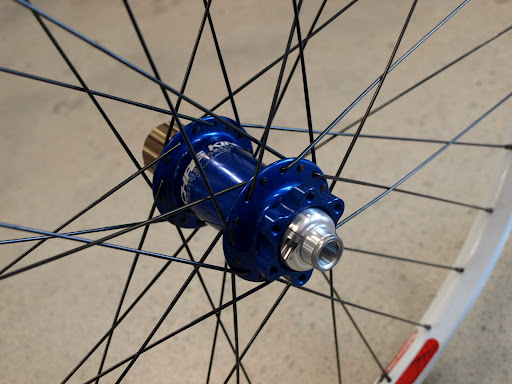

Haydens Chris King blue hubs and white Flow rims

Chris King hubs are magical – the deep colours look almost wet, and the sound of the 72 engagement point rear hub has been likened to a swarm of angry bees. King make all of their hubs in a high-tech, eco-friendly factory in Portland, USA.

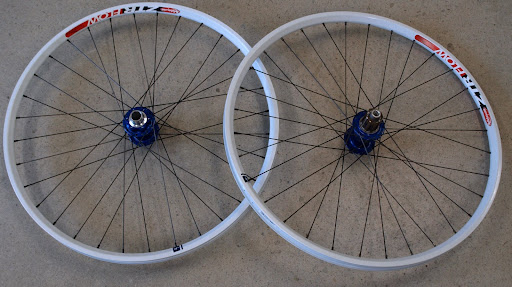

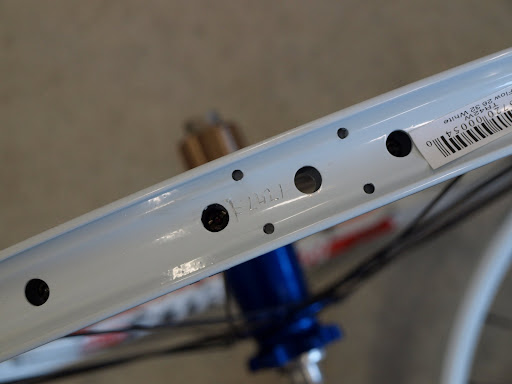

This pair of 20mm front / 150x12mm rear hub is laced to Stans Flow rims in white. Spokes are DT Swiss Competitions and I used aluminium nipples on the front wheel and brass on the rear wheel.  Originally we were going to use blue spoke nipples but the King hubs were a much darker shade of blue than the Wheelsmith or DT nipples I have and it didn’t look right so I opted for black.

This pair is heading up the Kapiti Coast for Hayden’s new DH bike.
